NavNet TZtouchXL TZT13X Hybrid Control Multi-Function Display

FURUNO NavNet TZtouchXL TZT13X Hybrid Control Multi-Function Display

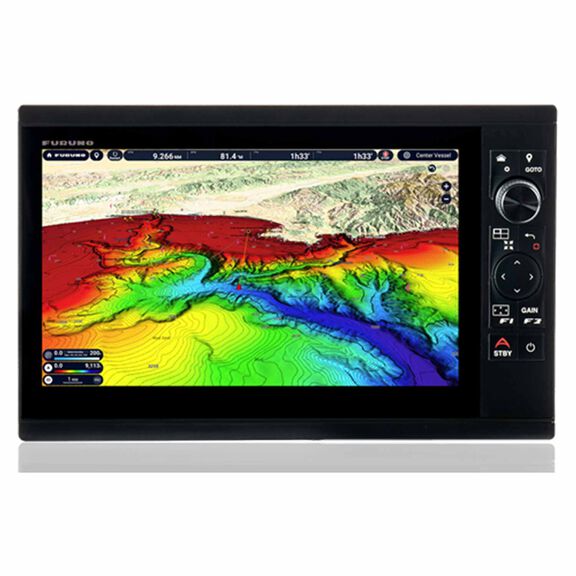

The TZT13X is a 13.3" Full HD Hybrid Control Multi-Function Display that brings together NavNet TZtouchXL's multi-touch capabilities with Furuno's RotoKey control knob and dedicated hardware buttons, delivering intuitive, reliable navigation under any sea conditions. At its core is a powerful hexacore processor for rapid response and seamless screen transitions. The IPS LCD panel produces crisp Full HD 1920×1080 imagery at 900 cd/m² brightness, viewable at any angle.

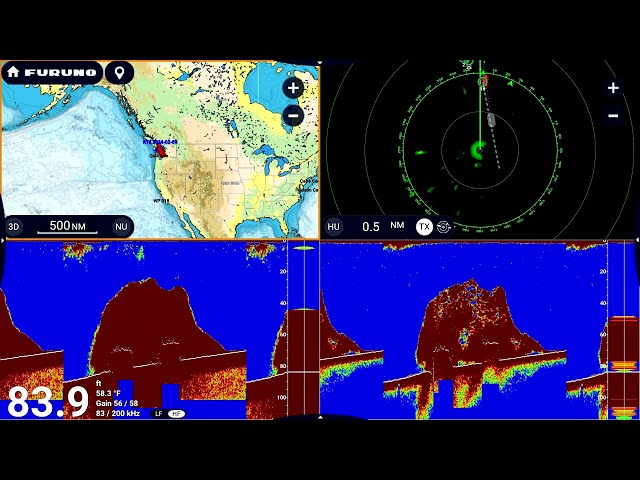

The TZT13X incorporates a powerful internal 1kW dual-channel TruEcho CHIRP and CW Fish Finder designed to operate across a wide range of frequencies (CW: 50/200 kHz; CHIRP: 40–240 kHz Low, Medium, and High), plus built-in CHIRP Side-Scan (220–240 kHz / 445–465 kHz) that scans both port and starboard, illuminating bottom structure and fish-hoarding structure in high definition up to 750 feet per side. For those who need greater depth penetration, the 2kW/3kW DFF3-UHD TruEcho CHIRP Network Fish Finder or the BT-5 Booster Box can extend output power to 5 or 10 kW.

Key Features

• 13.3" Wide Full HD IPS LCD display, 1920×1080, 900 cd/m², IP56 waterproof
• Hybrid control: touchscreen + RotoKey knob + dedicated physical buttons
• Powerful hexacore processor for rapid response
• Built-in dual-channel 1kW TruEcho CHIRP™ and CW Fish Finder
• Built-in CHIRP Side-Scan (230kHz or 455kHz) with up to 750 ft range per side
• TZ MAPS chart engine with BathyVision (3-inch contour resolution), AI Routing, Community Edits, satellite photos, and raster/vector charts
• Risk Visualizer and AI Avoidance Route (requires NXT radar connection)
• Furuno exclusive Fish-It, Drift-It, and Follow-It features
• Internal GPS: 72-channel GPS + SBAS, 100ms/10Hz update rate, WAAS/MSAS accuracy
• NMEA2000 certified; NMEA0183 serial output; 1000BASE-T Ethernet LAN
• Wireless LAN (IEEE 802.11b/g/n) for NavNet Viewer, Remote, Controller, TZ First Mate, and TZ iBoat apps
• TZ Cloud connectivity (Cloud.MyTimezero.com)
• Video input (NTSC/PAL), USB 3.0, Micro SDXC card slot, 2 AUX I/O ports
• Supports up to 100 ARPA radar targets, ACCU-FISH, A-Scope, Bottom Discrimination
• Stores 30,000 user points, 100,000 track points, 200 routes (500 pts each)
• Compatible with Furuno DRS-NXT, DRS4DL+, DRS4DX, DRS6A/12A/25A X-Class radars
• Operating temperature: -15°C to +55°C; Power: 12–24 VDC
• Includes 2-year warranty
