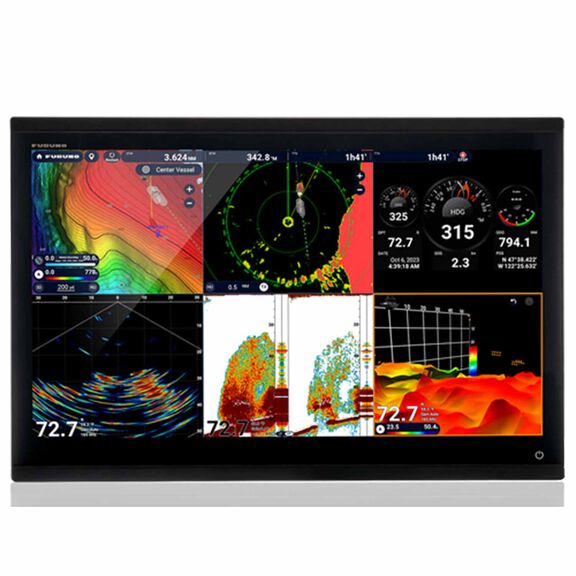

Furuno NavNet TZtouchXL Multifunction Multi-Touch Display - 24"

Furuno NavNet TZtouchXL Multifunction Multi-Touch Display - 24"

The Furuno NavNet TZtouchXL 24" multifunction display delivers an extra-large, wide all-glass IPS Full HD touch display with exceptional clarity from all angles, enhancing the functionality and style of any helm. Designed to make navigation intuitive and easy under any sea conditions, regardless of vessel size, the TZT24X combines cutting-edge display technology with the most advanced charting and networking features available in recreational marine electronics.

The TZtouchXL series features the most intuitive user interface available. With edge-swipe features and single-tap menu options, you are never more than a tap or swipe away from what you want to see or do. If you can swipe your phone, you can operate TZtouchXL. TZ MAPS delivers highly detailed navigation and fishing charts with BathyVision bathymetric overlays, custom depth color shading, community edits, high-resolution satellite photos, and eight chart presentation types. Charts can be purchased and updated directly from the MFD via a Wi-Fi connection, and all TZ MAPS purchases unlock those charts in the free TZ iBoat app for mobile devices and TZ Pro navigation software.

AI Routing utilizes TZ Maps to generate a recommended point-to-point route that intelligently plans a path through channels, marina entrances, inlets, and more, using your set boat draft, chart data, and other safety parameters. Once generated, the route can be edited and new waypoints added as desired. The AI Avoidance Route feature, available when a compatible Furuno radar is connected, instantly determines and provides a safe route around hazards, which can be sent directly to a Furuno NavPilot series autopilot with a single tap.

Risk Visualizer is a unique function that provides a visual representation of potential collision risks of approaching objects 360 degrees around the vessel, automatically creating dynamic icons for targets with the highest collision probability. The TZtouchXL series is fully compatible with Furuno X-Class magnetron and NXT Solid-State Doppler radars, including compact dome options such as the DRS2DNXT and DRS4DNXT, and high-power open array options up to 200 watts.

While the TZT24X does not include an internal sounder or GPS, it has full control across the NavNet network and is compatible with a wide range of external Furuno sonar modules for deep dropping and sportfishing applications. The DFF3D Multibeam Sonar provides a 120-degree swath with seafloor coverage up to 3x water depth and can image fish directly below the boat to 300m. CHIRP Side-Scan, built into smaller TZtouchXL models, can be accessed across the network on any connected TZT22X or TZT24X display. Optional remote controllers including the MCU006 and MCU006H provide tactile RotoKey and dual-purpose button control of any networked TZtouchXL MFD.

TZ Cloud enables automatic and secure backup of marks, routes, boundaries, photos, and catch data with a free TimeZero account. TZ Weather provides free enhanced weather service and a premium high-resolution option, requiring software version 25 or later. Over-the-Air (OTA) software updates are delivered automatically via Wi-Fi. NOAA vector navigation charts for the entire U.S. are included via a free unlock code.

Key Features

• Extra-large 24" all-glass IPS Full HD (1920x1080) multi-touch display
• Powerful hexacore processor for rapid response
• TZ MAPS with BathyVision, AI Routing, AI Avoidance Route, and Risk Visualizer support
• Purchase and update charts directly from the MFD via Wi-Fi
• Compatible with Furuno X-Class and NXT Solid-State Doppler radars
• Supports 100W and 200W Open Array NXT Solid-State Doppler and X-Class Magnetron Radars
• Full Furuno network support for additional displays, sonar modules, AIS, and autopilot
• NMEA 0183 and NMEA 2000 connectivity
• HDMI In, HDMI Out, Analog Video In, USB (x2), microSD card slot
• Built-in Wi-Fi with Over-the-Air (OTA) software updates
• TZ Cloud for automatic cloud backup of user data
• TZ Weather support (free enhanced and premium options)
• No internal GPS or sounder — external modules required, sold separately
• IP56 waterproof rating
• 2-year warranty
• Optional MCU006 and MCU006H remote controllers compatible
