Furuno DFF1UHD+ Network Fishfinder

Furuno DFF1UHD+ Network Fishfinder

The Furuno DFF1UHD+ is a powerhouse black box network fish finder engineered to work hand-in-hand with the NavNet TZtouchXL line of Multi-Function Displays, succeeding the proven BBDS1 and DFF1-UHD with superior performance, modern connectivity, and capabilities not found in previous generations. By combining CW, TruEcho CHIRP, and CHIRP Side-Scan technologies into a single compact module, the DFF1UHD+ gives both weekend anglers and seasoned professionals a sharper, deeper, and wider view beneath the boat — whether trolling blue water for tuna or working a nearshore reef for snapper.

Designed for helms featuring the TZT22X, TZT24X, or Black Box TZTBBX, the DFF1UHD+ drives transducers from 300/600W up to 1kW, offering unmatched flexibility across hull types and fishing styles. With a display range spanning 6 to 4,000 feet and operation in both TruEcho CHIRP and CW modes, classic Furuno features including ACCU-FISH, Bottom Discrimination (with compatible CW transducer), A-Scope, and Auto Gain have been refined to deliver crystal-clear returns, pinpointing fish arches and bottom hardness with the precision seasoned captains expect.

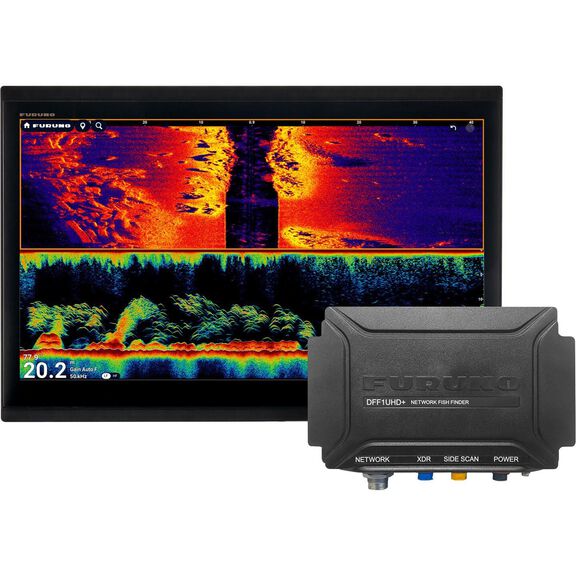

The addition of CHIRP Side-Scan brings a new dimension to fish finding. Available at 230kHz or 455kHz center frequency depending on transducer selection, Side-Scan reveals structure, bait, and gamefish up to 750 feet per side. Eight CHIRP Side-Scan display colors and flexible layout options — full screen, 1/2, 1/3, 1/4, and 1/6 screen formats — allow captains to tailor their view for any environment or target species.

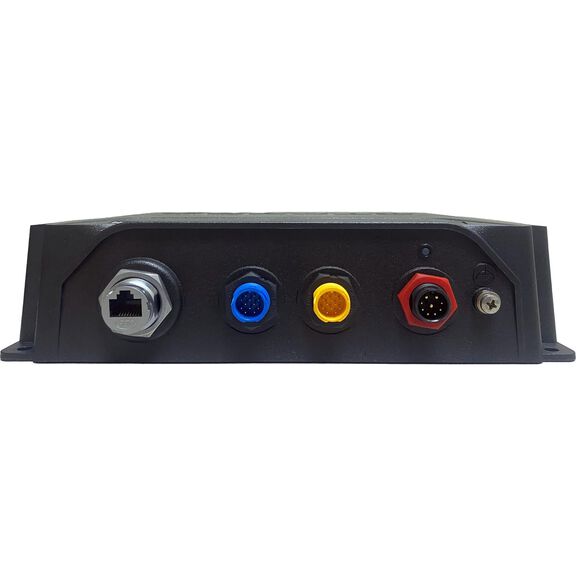

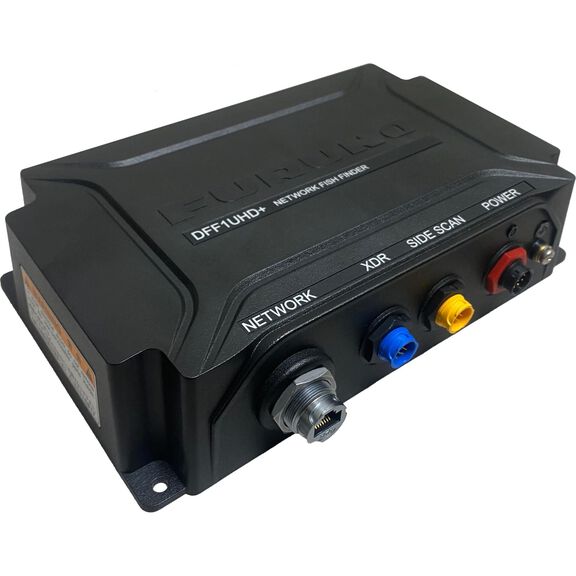

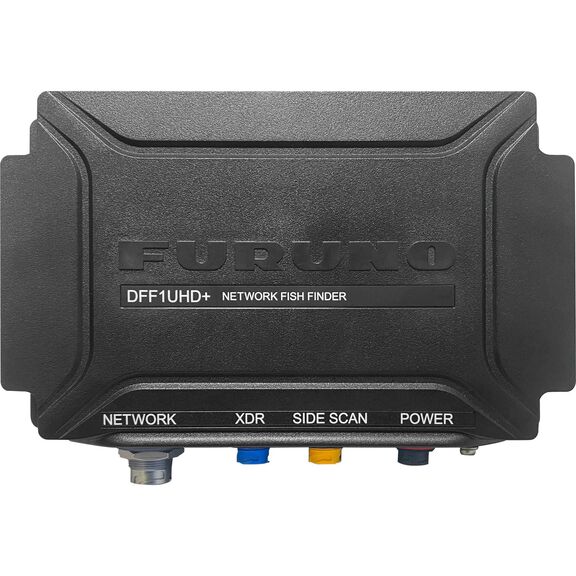

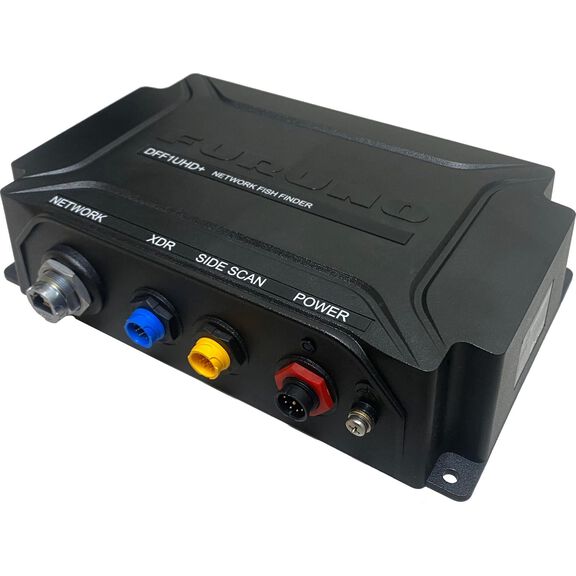

Installation is simplified by color-coded, waterproof connectors that match those on NavNet TZtouchXL displays, and the compact housing is over 60% smaller than the DFF1-UHD and nearly 50% smaller than the BBDS1. Additional capabilities include dual TX CHIRP, speed and temperature sensor support, heave compensation when paired with a Satellite Compass, a built-in demo mode, and planned compatibility with TZtouch3, TZtouch2BB, and MaxSea/TZ Professional via software updates.

A wide variety of transducer combinations are supported to meet the needs of any vessel — with or without Side-Scan — providing flexibility for single CHIRP, dual CHIRP, single CW, or combined configurations.

Key Features

• All-in-one black box solution compatible with TZT22X, TZT24X, and TZTBBX
• Combines CW, TruEcho CHIRP, and CHIRP Side-Scan into a single compact unit
• Display range from 6 to 4,000 feet (2–1,200 m)
• Drives transducers from 300/600W up to 1kW (matching box MB1100 required for some CW transducers)
• CHIRP Side-Scan at 230kHz or 455kHz center frequency, up to 750 feet per side
• Advanced modes: ACCU-FISH, Bottom Discrimination, A-Scope, Manual Gain, Auto Gain (Fishing/Cruising), TruEcho CHIRP
• 8-Step Picture Advance: x4, x2, x1, 1/2, 1/4, 1/8, 1/16, stop
• Fish Finder Alarms: Fish school, fish school for bottom lock
• Eight CHIRP Side-Scan display color options; flexible multi-pane layout support
• Color-coded, waterproof connectors matching TZtouchXL connector color scheme
• Over 60% smaller than DFF1-UHD; nearly 50% smaller than BBDS1
• Dual TX CHIRP, speed and temperature sensor support, heave compensation with Satellite Compass
• Built-in demo mode for training or showroom use
• IPX6 waterproof rating; operating temperature -20°C to +55°C
• Planned compatibility with TZtouch3, TZtouch2BB, and MaxSea/TZ Professional via software updates
