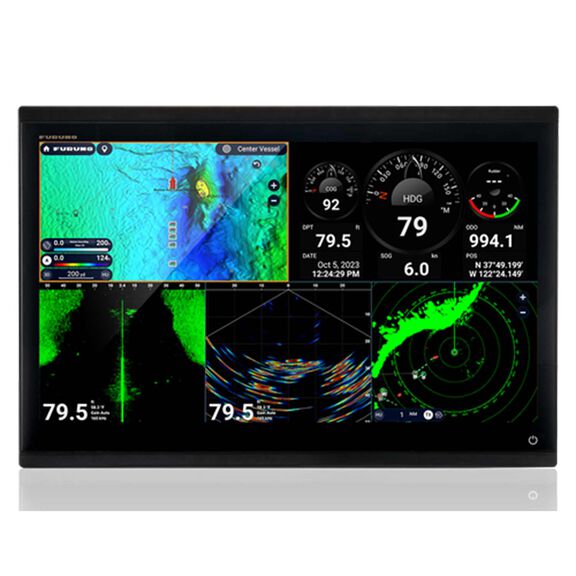

NavNet TZtouchXL 22" Multifunction Display

FURUNO ELECTRONICS NavNet TZtouchXL 22" Multifunction Display

The NavNet TZtouchXL TZT22X delivers an expansive 21.5-inch (22-inch class) all-glass IPS full HD touch display driven by a powerful hexacore processor, setting a new standard for helm-station multifunction displays. The intuitive edge-swipe interface and single-tap menu options make navigating the system as simple as using a smartphone — you are never more than a tap or swipe away from any function or screen.

TZ MAPS is the heart of the TZT22X chart experience, drawing upon a worldwide database of high-resolution information to render crisp, clear navigation charts at any magnification. Navigators can download wide chart areas, satellite photography, and bathymetric data directly from the display over WiFi. Custom depth color shading and BathyVision bathymetric overlays create charts of unmatched detail. Users can create and share custom objects with other TZ MAPS users through TimeZero's moderated service, keeping charted buoy positions and other features current on the fly. Purchasing a TZ MAPS chart area also unlocks AI Routing, which intelligently plans routes accounting for the vessel's draft, charted depths, and navigational obstacles, as well as the free TZ iBoat app for mobile devices.

Whether equipped with X-Class magnetron or NXT Solid-State Doppler radars, the TZT22X unlocks advanced radar capabilities including Target Analyzer™, Fast Target Tracking, Bird Mode, and Rain Mode. Two exclusive safety features — Risk Visualizer™ and AI Avoidance Route™ — are available when a compatible Furuno NXT radar is connected. Risk Visualizer assesses all targets 360° around the vessel and creates dynamic collision-risk icons, while AI Avoidance Route instantly calculates a safe path around hazards and can send it to a compatible Furuno NavPilot autopilot with a single tap.

TZ Cloud securely backs up marks, routes, boundaries, photos, and catch data with a free TimeZero account, synchronizing automatically so all data is accessible at home or on mobile devices. TZ Weather provides both a free enhanced weather service and a premium high-resolution option, requiring a My TIMEZERO account and software version 25 or later, which can be installed over the air via WiFi.

The TZT22X supports full Furuno network connectivity: external sonar modules (DFF1-UHD, DFF3-UHD, BBDS1, DFF-3D Multibeam Sonar), CHIRP Side-Scan when networked with TZT10X/13X/16X units, and third-party apps through NavNet Command Center. Remote control options include the MCU-006 and MCU-006H controllers featuring a RotoKey™ and ten dual-purpose buttons. NMEA 2000 certified with NMEA 0183 output, Ethernet LAN, dual USB ports, HDMI input and output, analog video input, and a front-accessible Micro SDXC slot round out the connectivity suite.
