3-position Ignition Switch, Magneto Type 5 Terminal
Model #
404956
Mfg #
MP39100
$34.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
3-position Ignition Switch, Magneto Type 5 Terminal
Model #
404956
Mfg #
MP39100
$34.99
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase

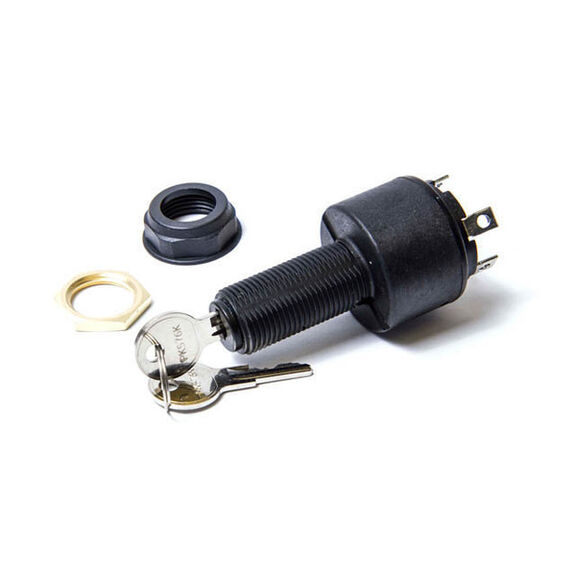

This magneto ignition switch is a direct replacement for Johnson/Evinrude Outboard 386545.
Sierra's Polyester Ignition Switch is impact- and corrosion-resistant and fits a standard 7/8"dia. hole. This three-position magneto switch provides Off-Run-Start positions. Includes two keys and different key codes for added security.
Key Features
- Maximum corrosion protection eliminates oxidation
- Inner seal between cylinder lock and contact plate
- Non-conductive housing eliminates potential shorts
- Three-position magneto switch
- Interchangeable with Johnson/Evinrude Outboard 386545
Specifications
- Material: Marine-grade glass-filled polyester
- Length: Long, 1 1/8" maximum panel thickness
- Hole Size: 7/8"
- Terminal Type: 5 screw tab
- Back Up Nut: Brass
- Face Nut: Hex black plastic
- Positions: Off-Run-Start
Rated
- Ignition: 15A @ 12V DC
- Solenoid: 30A @ 12V DC
The Sierra Engine Parts Selector
In addition to ignition switches, we offer a wide variety of other engine parts manufactured by Sierra. To see if we have the part you need, see our Engine Parts Selector, where you can search by engine make, serial number and model or year of manufacture.
Diameter
7/8" Mounting Hole
Type
Switches
Voltage
Ignition 15 Amps at 12 Volts DC
Warranty
One Year
