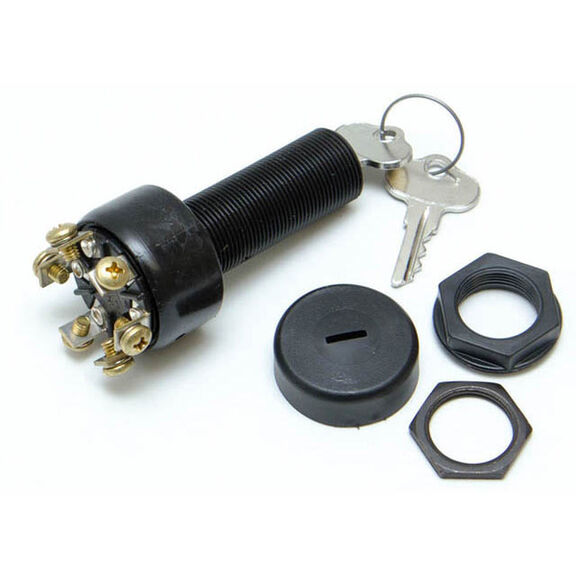

MP39090 Heavy-Duty Polyester Ignition Switch
Model #
10529907
Mfg #
MP39090
$59.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
This three-position magneto switch is impact- and corrosion-resistant.
Sierra's Heavy-Duty Polyester Ignition Switch fits a standard 7/8"dia. hole and includes a snap-on rubber cap for additional protection from mist or spray. Nickel-silver screw terminals ensure long-lasting conductivity. This three-position magneto switch provides Off-Run-Start with push-to-choke (6 terminals). Includes two keys and different key codes for added security.
Key Features
- Maximum corrosion protection eliminates oxidation
- Inner seal between cylinder lock and contact plate
- Non-conductive housing eliminates potential shorts
- Three-position magneto switch
- Interchangeable with Cole-Hersee #M832BP
Specifications
- Material: Marine-grade glass-filled polyester
- Length: Long, 1 1/8" maximum panel thickness
- Hole Size: 7/8"
- Terminal Type: 6 screw tab
- Back Up Nut: Anodized steel
- Face Nut: Hex plastic with snap-on rubber cap
- Choke: Push-to-choke
- Positions: Off-Run-Start
Rated
- Ignition: 15A @ 12V DC
- Solenoid: 30A @ 12V DC
- Choke: 7A @ 12V DC
Diameter
7/8" Mounting Hole
Type
Switches
Warranty
One Year
