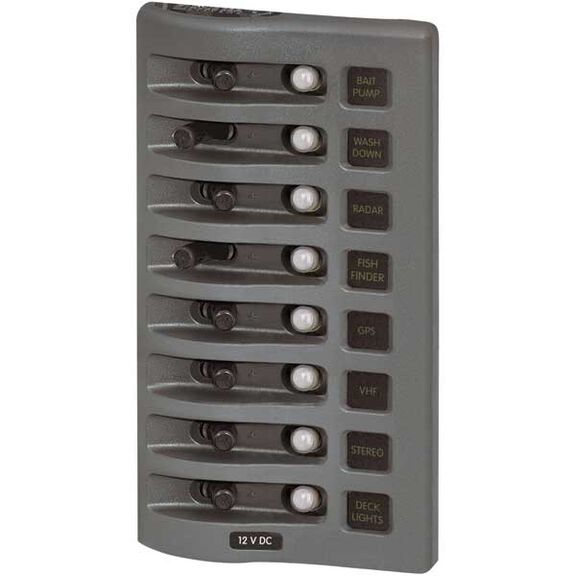

WeatherDeck® Waterproof Circuit Breaker Panel, 8 Position
Model #
14122451
Mfg #
4378
$192.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
WeatherDeck® Waterproof Circuit Breaker Panel, 8 Position
Model #
14122451
Mfg #
4378
$192.99
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
BLUE SEA SYSTEMS
$59.99
A rugged breaker panel that is ideal for flybridge or open cockpit installations
WeatherDeck® waterproof breaker panels are ready to take on the harshest of environments. They can be oriented in any of four different ways to expand your mounting location options. Included square circuit labels are designed to be placed above or below in the horizontal configuration, and to the right or left in the vertical. Rugged UV stabilized waterproof boots. Green LEDs illuminate circuit labels to aid low light readability. Circuit reset buttons are located between switch and label for easy access.
Key Features
- Rated IP67 from the face when installed with supplied gasket
- IP67 rated for immersion in 1 meter for 30 minutes
- Ideal for flybridge and open cockpit applications
- Backlit labels (included)
- Colored LED lights indicate ON, OFF and blown fuses
- Breaker reset buttons located on face of panel for easy access
- Lifetime warranty
Specifications
- Weatherproof: waterproof
- Positions: 8
- Voltage: 24V
- Panel Cumulative Rating: 45A
- Switch Rating: 15A @12V, 9A @ 24V
- Approvals: CE, IP67
- Dimensions: 7 11/16"H x 4 1/4" x 3 1/2"D
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Amperage
100 Amps at 12 Volts DC
ISO Approved
IP67-Water Resistant
Mounting Hardware
ATO/ATC Fuses; Mounting Hardware (Sold Separately)
Type
Fuse Panels
Warranty
Lifetime
