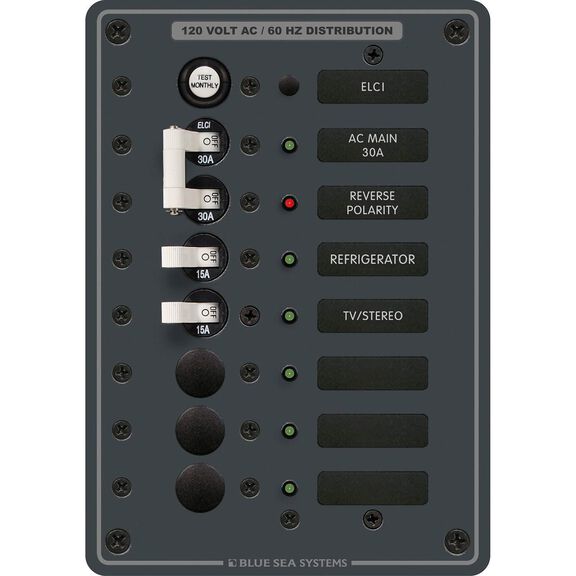

2-Position ELCI Main 30A, 2 Poles
Complete Your Purchase
Protect passengers and swimmers by adding an ELCI in a traditional metal panel
Equipment Leakage Circuit Interrupter (ELCI) panels protect not only everyone on your boat, but also those in the surrounding water from accidental electric shock caused by a ground fault or a faulty ground. This is an especially dangerous situation in fresh or brackish water. Blue Sea Systems designed this panel as a stand-alone with space for customization or expansion. It comes pre-wired with an A-Series 30A ELCI main breaker and two 15A branch breakers. LED lights indicate reverse polarity and that a switch is in the ON position. Large format labels are backlit and easy to read. Installation of an ELCI panel meets ABYC E-11 when mounted within ten feet of AC shore power inlet.
Key Features
- Protects passengers and swimmers from accidental electric shock due to ground fault or faulty ground.
- Matches other Blue Sea Systems traditional metal panel installations
- Includes two 15A single pole branch breakers
- Breakers have Trip-free feature and cannot be held in ON position when fault is detected
- Meets ABYC E-11 regulation when installed within guidelines
- Lifetime warranty
Specifications
- Amperage: 30A
- Actuator Style: Flat Rocker
- Maximum Voltage: 240V AC, 120V AC per pole
- Circuit Breaker Type: Magnetic Hydraulic- trip free
- Interrupt Capacity: 5000A
