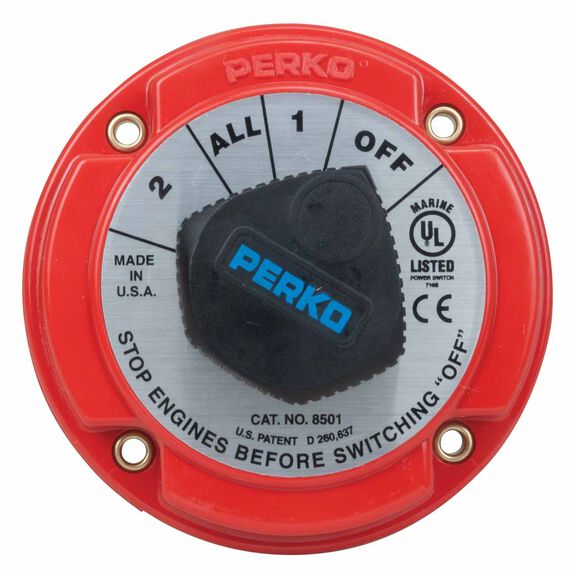

PERKO® Medium Duty Battery Selector Switch
Model #
281469
Mfg #
8501DP
$65.49
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
SEAFIT
$1.99
-
$2.99
Price reduced from
$11.49
to
-
Price reduced from
$16.49
to
ANCOR
$5.74
-
$46.99
Price reduced from
$32.99
to
-
Price reduced from
$46.99
to
Select Items on Clearance
A tried and true design for a wide variety of applications.
Perko’s medium duty battery disconnect switches are super versatile. Because they are ignition protected, this switch can be installed almost anywhere, including engine rooms of gasoline powered boats. Compatible with 6V to 50V systems.
Key Features
- Make before break feature allows switching between “1” “All” and “2” while the engine is running
- Fiber reinforced polycarbonate construction
- Easy turn knob
- Ignition protected
- Five-year warranty
Specifications
- Switch Type: Dual Battery switch disconnect
- Switch Positions: 4
- Battery Combine: Yes
- Alternator Field Disconnect: no
- Maximum Voltage: 6V-50V
- Continuous Rating: 250A
- Intermittent Rating (duration): 360A
- Cranking Rating (30Sec): N/A
- Battery Inputs: 2
- Cable Size to meet ratings: N/A
- Mounting Holes: # 10 Screws
- Terminal Stud size: 5/16"
- Dimensions: 5 ¼"dia x 2 5/8" D
- Weight: 1 Lb. (estimated)
- Approvals: UL Listed, CE, UKCA Certification
- Made in The USA
Amperage
250 Amps
Color
Red
Dimensions
5 1/4" Diameter x 2 5/8" Depth
ISO Approved
UL Listed
,
CE
Type
Switch: Off/1/All/2
Voltage
6 to 32 Volts DC
Warranty
Five Years
