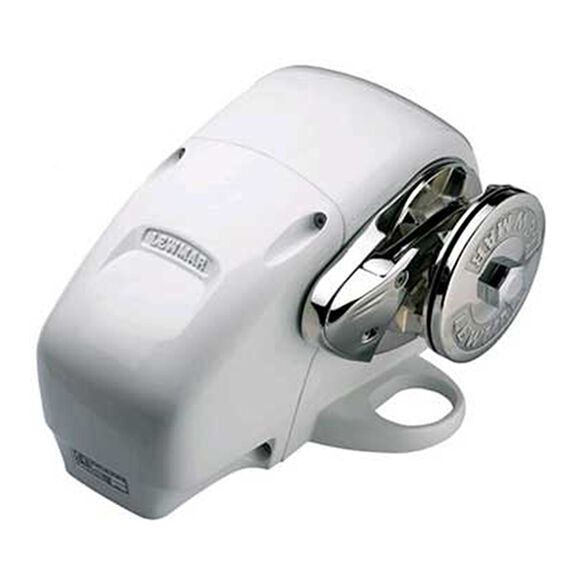

H3 Gypsy Heavy Duty Windlass
Model #
5440656
Mfg #
69600542
$3,139.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
Lewmar's H3 Horizontal Windlass is a good choice for many 30'-45' boats.
Lewmar's H3 winch simplifies installation with its horizontal design. Dependable service is assured by the robust worm drive motor gearbox and sealed case for reduced maintenance and long life in the marine environment. The low-profile design frees up valuable deck space and aluminum and composite maincase reduce weight on the bow. This model comes with a reed switch and magnet fitted as standard for chain counter applications. Operates on 12V DC and includes a 110A circuit breaker, H3 gypsy for 10mm (3/8") chain and guarded up/down rocker switch.
For specifications, installation and replacement parts, see the H2/H3 Windlass Manual.
Key Features
- For boats 30'–45'
- Accommodates rope/chain rodes
- Horizontal one-piece design simplifies installation
- Robust horizontal worm motor-gearbox for reliable performance
- Integral contactor protected by maincase
- Sealed waterproof unit requires minimum maintenance
- Aluminum and composite maincase for reduced weight
- Includes reed switch and magnet fitted as standard for chain counter applications
- Three year warranty
Amperage
85 Amps
Anchoring Speed
Power Down 59 Feet per Minute
Diameter
3/8" Chain
,
9/16" to 5/8" Line
Dimensions
8 5/16" Height x 14 1/4" Width x 14 3/8" Length
Material
Aluminum
,
Composite
Maximum Boat Length
45 Feet
Maximum Pull
1900 Pounds
Minimum Boat Length
30 Feet
Retrieval Speed
59' per Minute at 475 Pounds
Style
Horizontal
Type
Rope and Chain Rode
