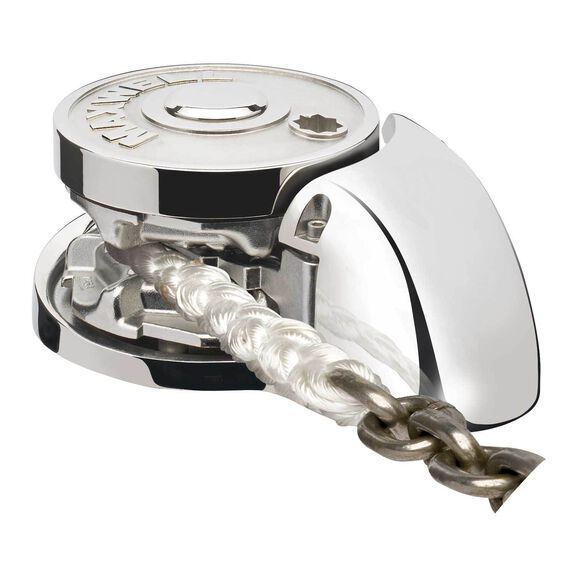

RC12-10 Windlass
Model #
14076111
Mfg #
RC121012V
$4,146.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
These stainless steel low profile windlasses feature a patented Maxwell Wave Design® chainwheel. The design of this chainwheel offers superior holding power with less wear on the rope. T chainwheel will accommodate any marine type chain. No need to worry about HT or BBB or PC—the chainwheel handles all of them! Designed for easy installation, the motor can be oriented in any of 10 different positions. The huge through-deck hawse pipe ensures easy entry and exit of the rope/chain or all chain rode. Includes dual direction solenoid, breaker panel, up/down panel switch and emergency handle.
- Style: Vertical
- Rode Type: Rope/chain
- Case Material: Type 316 stainless steel
- Capstan/Gypsy Material: Stainless steel
- Boat Length: 35'-55'
- Rode Size: 3/8" chain, 3/4" rope
- Max. Pull: 2500 lb.
- Voltage/Draw: 12V/90A
- Speed Up/Min.: 79' (800lb.)
- Speed Down/Min.: 65'
- Height: 5-1/8"
- Width: 8-1/8"
- Length: 11-5/8"
- Warranty: Three years
Amperage
90 Amps
Anchoring Speed
65' per Minute
Diameter
3/8" Chain
,
3/4" Line
Dimensions
8 1/8" Width x 5 1/8" Height x 11 5/8" Length
Material
Stainless Steel
Maximum Boat Length
55 Feet
Maximum Pull
2500 Pounds
Minimum Boat Length
35 Feet
Retrieval Speed
79' per Minute at 800 Pounds
Style
Vertical
Type
Rope and Chain Rode
