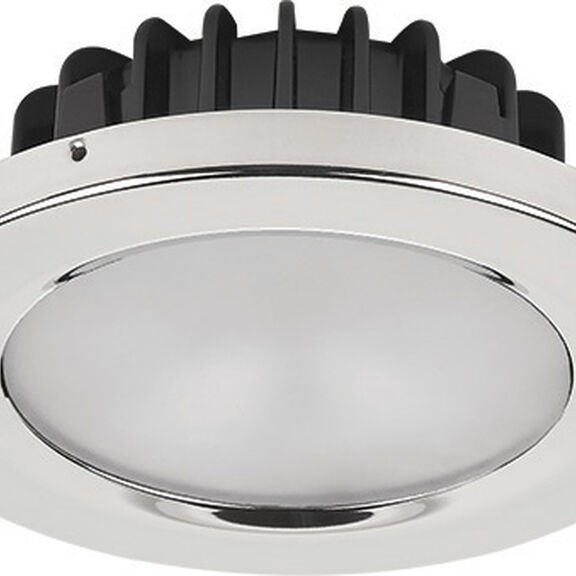

Pool PowerLED Tri-Color, 10-40VDC, Polished SS

Imtra Pool PowerLED Tri-Color, 10-40VDC, Polished SS

The Imtra Pool PowerLED Tri-Color is a premium recessed LED downlight engineered for demanding marine environments. Designed to seamlessly replace legacy halogen spotlights, it requires only 2 wires, eliminating the need to run extra wiring during installation. Integrated drive electronics mean no remote driver installation is required, simplifying the installation process for hard ceilings such as fiberglass or wood. The light is secured with three screws and is equally at home in wet exterior locations including hard tops, arches, walkway overhangs, and shower stalls.

Precision-engineered optics produce fully blended illumination across all three color channels — Red, Blue, and Cool White — with no hot spots or distracting artifacts. The robust thermal management system ensures maximum LED life with minimal lumen depreciation over the rated 50,000+ hour lifespan. Color selection and dimming are both controlled via a simple momentary push-button interface, and the fixture is compatible with Imtra's ILIM80130 and ILIM80140 single or dual-channel PWM dimmer modules for flexible single or bi-color dimming. The 10–40VDC input voltage range makes it suitable for 12V, 24V, and 32VDC marine electrical systems.

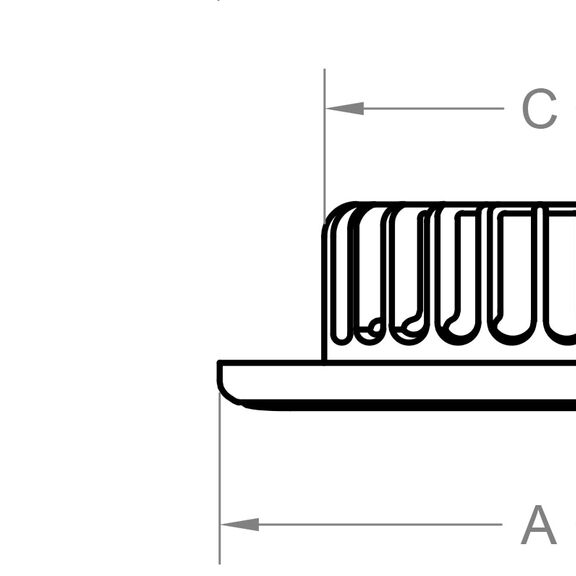

The polished stainless steel trim ring (3.43"/87mm diameter) provides an elegant finish, while the housing is constructed from black electrophoretic aluminum. The frosted glass lens diffuses light evenly across the illuminated area, delivering a 297-lumen output equivalent to a 25W halogen at just 5.0W. With a Color Rendering Index of 85 and a Correlated Color Temperature of 6000K for the white LED, the light quality is well suited to both task and accent lighting applications aboard vessels. Manufactured in the USA and backed by a comprehensive 5-year warranty (1-year finish warranty), this fixture carries CE-EMC and RoHS certifications.

Key Features

• Tri-color output: select between Red, Blue, and high-brightness Cool White
• Simple 2-wire connection for power and color selection
• Control via user-provided single On/Off switch with momentary push-button dimming interface
• 10–40VDC input voltage — compatible with 12V, 24V, and 32VDC systems
• Integrated driver — no remote driver required
• IP65 rated for frontal water exposure protection
• 50,000+ hour rated LED lifespan
• Dimming range 5–100% when paired with compatible Imtra PWM dimmer
• Compatible with Imtra dimmers ILIM80130 and ILIM80140
• Polished stainless steel bezel with black electrophoretic aluminum housing
• Frosted glass lens for uniform, artifact-free illumination
• Reverse polarity, transient, and spike protection
• CE-EMC and RoHS certified, Class III
• Made in USA — 5-year warranty (1-year finish)
