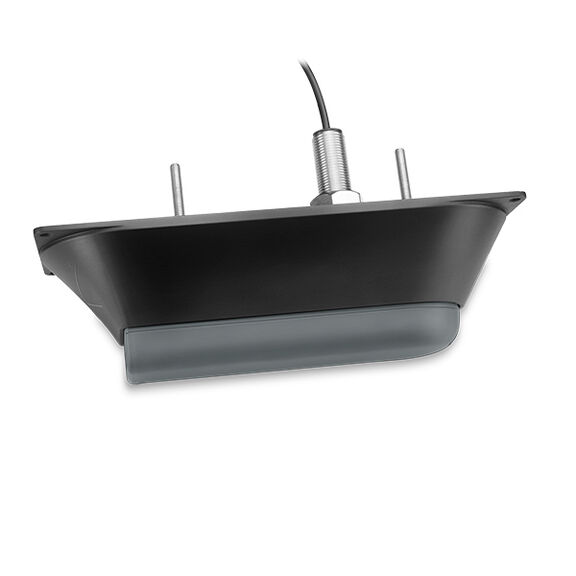

GT21-TH Thru-Hull Traditional and CHIRP ClearVu Transducer
Model #
17596305
Mfg #
010-01962-10
$474.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
GT21-TH Thru-Hull Traditional and CHIRP ClearVu Transducer
Model #
17596305
Mfg #
010-01962-10
$474.99
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
Displays clear and crisp fish arches with superior target separation.
Perfect for coastal and offshore fishermen who want traditional sonar and CHIRP ClearVü scanning sonar with a stainless steel stem, this thru-hull mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.
GT21-TH includes an 8-pin transducer with stainless steel stem, fairing block, isolation plate and bushings, mounting hardware and installation instructions.
Specifications
- Style: Thru-hull
- Cable Length: 30'
- Connector: 8-pin
- Maximum Deadrise Angle: Up to 25° deadrise
- Monitors: Depth and Temperature
- Transmit Power: Traditional 600W; ClearVü 500W
- Frequency Range: Traditional 50/200kHz; ClearVü CHIRP 260kHz (245-275kHz) and 455kHz (445-465kHz)
- Max. Depth: Traditional: 1,500'; ClearVü: 1,000'
- Beamwidths: Traditional (40°/10°); ClearVü (2.0°x 51° @ 260kHz) & (1.4°x 29° @ 455kHz)
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Type
Thru-Hull
Beam
Traditional 40/10
Deadrise Angle
0 to 5 Degree
Frequency
50/200kHz+ DownVu CHIRP
Material
Stainless Steel
Maximum Depth
Traditional 1500 Feet
,
DownVu 1000 Feet
Sonar
CHIRP Sonar
,
Depth
,
Temperature
,
Multiple Beams
,
Variable Frequencies
Transmit Power
600 Watts Traditional/500 Watts DownVu
Type
Thru-Hull
