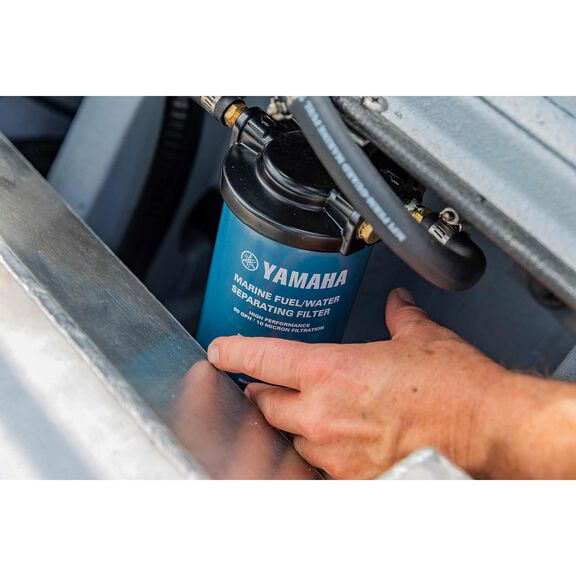

MAR-FUELF-IL-TR Fuel Filter/Water Separator, 10-Micron

Modern marine fuel is not the clean, stable product it once was. Ethanol-blended gasoline — now standard at most fuel docks and marina pumps — introduces a set of problems that carbureted and EFI outboard engines were never designed to handle: phase separation that pulls water out of the fuel into a concentrated slug at the bottom of the tank, corrosive ethanol chemistry that attacks rubber fuel system components, and accelerated varnish and gum formation that clogs injectors, jets, and fuel passages. The consequences range from rough running and hard starting to catastrophic injector failure, powerhead damage, and engine-out situations miles from the nearest dock. The Yamaha MAR-FUELF-IL-TR 10-Micron Fuel Filter/Water Separator is your engine's first and most important line of defense against every one of these threats — a genuine OEM-quality filtration system designed specifically for Yamaha outboards that intercepts contamination before it reaches the engine.

Why Fuel Filtration Is Not Optional for Modern Marine Engines.
Fuel injection systems operate at extremely precise tolerances. EFI injectors meter fuel in microsecond pulses with orifices measured in thousandths of an inch — a particle that would pass harmlessly through a carbureted engine can lodge in an injector orifice, disrupting the spray pattern, reducing fuel delivery, or blocking the injector entirely. Water in the fuel system causes corrosion of injector components, fuel rail passages, and high-pressure pump internals — damage that is expensive to diagnose and repair, and that typically occurs progressively and invisibly until a component fails. A quality 10-micron fuel filter/water separator positioned in the fuel line before the engine is the most cost-effective engine protection investment available — far less expensive than a single injector cleaning, and orders of magnitude less expensive than the engine repair that unfiltered fuel contamination ultimately causes.

10-Micron Filtration — The Right Specification for EFI and High-Performance Outboards.
Filtration efficiency is measured in microns — the size of the smallest particle the filter element captures and retains. The MAR-FUELF-IL-TR's 10-micron rating means it captures particles 10 microns and larger from the fuel stream. To put this in practical context, 10 microns is approximately one-seventh the diameter of a human hair — invisible to the naked eye and small enough to cause real damage to precision fuel system components if allowed to pass through. Ten microns is the filtration specification recommended by Yamaha for EFI outboards — where the tightest fuel system tolerances make fine particle filtration most critical — as well as for HPDI two-stroke engines and standard carbureted applications. This single filter specification covers the full range of Yamaha outboard technology.

Yamaha OEM-Specification Design — Built for Your Engine.
The MAR-FUELF-IL-TR is not a universal aftermarket filter adapted for marine use — it is an OEM-specification Yamaha fuel filter engineered to the exact flow, filtration, and dimensional requirements of Yamaha outboard fuel systems. OEM specification means:

• Correct Flow Rate: The 90 GPH flow capacity is sized to meet the maximum fuel demand of compatible Yamaha outboards without creating fuel starvation under wide-open-throttle conditions — a failure mode that can occur with undersized aftermarket filters that restrict flow at high engine load
• Correct Filtration Media: The filter element material and construction are specified to Yamaha's requirements for particle capture efficiency, water separation performance, and media integrity under the fuel chemistry conditions present in ethanol-blended marine gasoline
• Correct Thread and Seal Specification: Spin-on filter dimensions, thread pitch, and sealing surfaces match Yamaha fuel system components for leak-free installation without modification

Water Separation — The Ethanol Problem Solved at the Filter.
The water separation function of the MAR-FUELF-IL-TR is, for most boaters in most seasons, the most operationally important capability of this filter. Ethanol-blended gasoline (E10 is now the standard at the vast majority of US fuel sources) absorbs moisture from the air into the fuel mixture. In a boat's fuel tank — which typically goes through repeated heating and cooling cycles that draw moist air in and out of the vent — this moisture absorption can become significant over time. When ethanol-blended fuel absorbs enough water, phase separation occurs: the ethanol and water separate from the gasoline and sink to the bottom of the tank as a concentrated water/ethanol slug. This slug, if drawn into the engine, can cause immediate lean-running conditions, hesitation, stalling, or severe internal damage.

The MAR-FUELF-IL-TR's water separation element intercepts this separated water before it reaches the fuel pump, injectors, or carburetor — capturing it in the filter bowl where it can be visually inspected and drained without reaching the engine. This is the critical "first line of defense" function that makes a quality fuel filter/water separator an essential component of any outboard fuel system, not an optional accessory.

90 GPH Flow Rate — High-Performance Capacity for Demanding Applications.
Flow rate is the often-overlooked specification that determines whether a fuel filter will actually support engine performance at high power output. At wide-open throttle, a high-performance outboard demands maximum fuel delivery — a filter that cannot flow fuel fast enough at peak demand creates a fuel starvation condition that manifests as a power drop, hesitation, or rough running under load. The MAR-FUELF-IL-TR's 90 gallons-per-hour flow rate provides ample capacity to support the fuel demands of compatible Yamaha outboards through the full power range without flow restriction.

USCG and ABYC Compliant — Meeting Marine Safety Standards.
The MAR-FUELF-IL-TR meets or exceeds all applicable US Coast Guard and American Boat and Yacht Council requirements for marine fuel filtration applications. ABYC and USCG standards for marine fuel system components address fire resistance, materials compatibility with marine fuel chemistry, and flow performance — compliance confirms that this filter meets the recognized safety standards for installation in a marine fuel system.

Spin-On Design — Straightforward Service and Element Replacement.
The spin-on filter format mirrors the design familiar from automotive oil filters — the entire filter element assembly threads onto a fixed base, and service consists of spinning off the old unit and threading on a new one. This design:

• Eliminates the need to disassemble a housing and handle a loose filter element
• Provides a fresh sealing surface with every filter change (the gasket is integral to the spin-on unit)
• Makes filter condition inspection simple — visually check the bowl for water accumulation at every pre-departure check
• Allows quick, clean service at the recommended change interval without tools in many installations

Compatible Engine Applications — Know Before You Install.
The MAR-FUELF-IL-TR is used on most two-stroke and four-stroke Yamaha outboards and covers the following application categories:

• Two-stroke and four-stroke EFI outboards — primary recommended application
• Two-stroke HPDI (High Pressure Direct Injection) outboards
• Carbureted two-stroke and four-stroke outboards

Important Sizing Note: Yamaha outboard models of 115 HP or less may require the smaller MAR-MINIF-IL-TR filter rather than this unit. Confirm your specific engine model and horsepower rating against Yamaha's application guide or your engine's owner's manual before ordering to ensure correct filter selection. Installing a filter with incorrect flow characteristics for your engine can result in fuel delivery problems.

What's in the Box

• 1 × Yamaha MAR-FUELF-IL-TR Fuel Filter/Water Separator — 10-Micron, Spin-On
• Integral water separation bowl
• Replacement gasket (integral to spin-on unit)
• Installation hardware and mounting bracket sold separately if required
