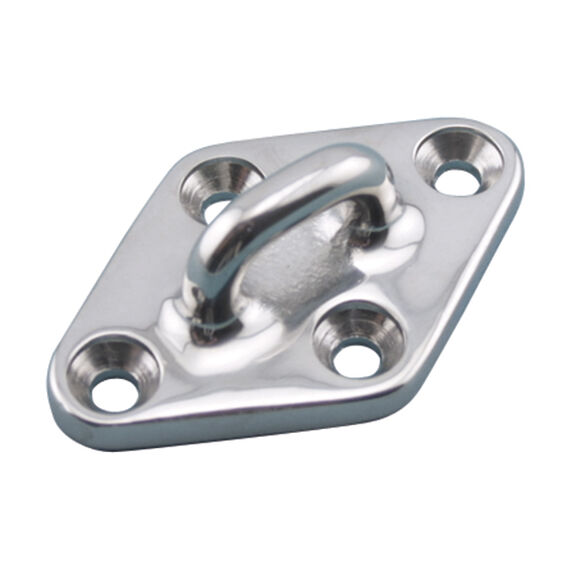

Diamond-Base Stainless-Steel Padeye
Model #
260893
Mfg #
S3703-0000-C
$74.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
All dimensions are center-to-center. Oblong pad eyes are measured as shown. Round pad eyes are measured inside hole to inside hole, not across the middle (not shown). Rectangular pad eyes are measured in the direction of the eye (A), and across the eye (B). Diamond pad eyes are measured on the long axis (A), followed by the narrow axis (B). Some models have slight variations due to imprecise machining when countersinking.
Features:
- 4" x 2-1/2" Diameter
- 3/8" Bail
- 3000 pound MWL
- 1" x 5/8" Inside Diameter
- Four 1/4" FHMS Fasteners
- 3-1/8" Hole Centers A
- 1-11/16" Hole Centers B
Breaking Strength
3000 Pounds
Inside Diameter
Max Line 5/8 Inch
Length
4 Inches
Material
Stainless Steel
Type
Pad Eye
