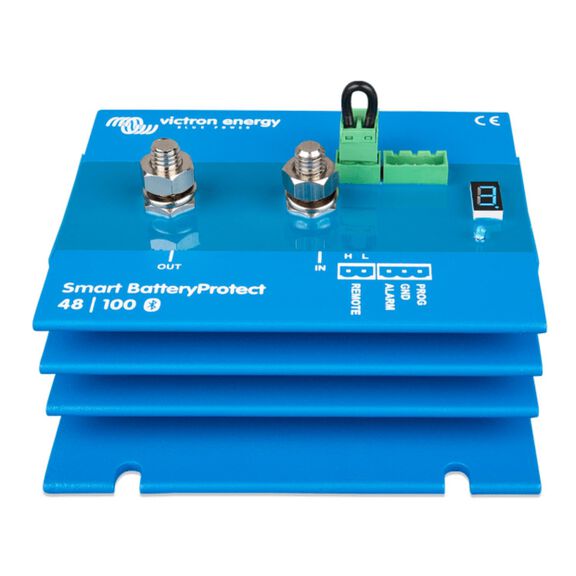

Victron Energy Smart BatteryProtect 48V-100A
The Smart BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine. When using Bluetooth to program the Smart BatteryProtect any required engage/disengage levels can be set. Alternatively, one of nine predefined engage/disengage levels can be set with the programming pin (see manual). If required, Bluetooth can be disabled. The Smart BatteryProtect is a uni-directional device. It can only deal with current in one direction, so either current to a load, or current from a charger, but not both currents at the same time. In addition to this, current only can only flow from the IN terminal to the OUT terminal. In case of use with a load, the battery connects to the IN terminal, and in case of use with a charger, the charger connects to the IN terminal.
Key Features
- Victron Energy Smart BatteryProtect 48-Volt 100 amp with built-in Bluetooth, disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine
- When using Bluetooth to program Victron Energy Smart Battery Protect, any required engage/disengage levels can be set. Alternatively, one of nine predefined engage/disengage levels can be set. Bluetooth can be disabled
- Victron Energy Smart Battery Protect automatically detects system voltage. Can be set to engage / disengage at several different voltages. The seven segment display will indicate which setting has been chosen
- Maximus continuous load current 100 amp and Peak current (during 30 seconds) 250 amp
