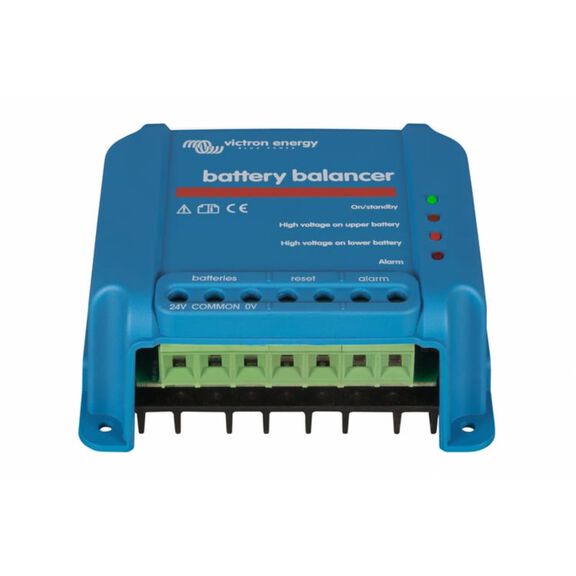

Victron Energy Battery Balancer
The Battery Balancer equalizes the state of charge of two series connected 12V batteries, or of several parallel strings of series connected batteries. When the charge voltage of a 24V battery system increases to more than 27V, the Battery Balancer will turn on and compare the voltage over the two series connected batteries. The Battery Balancer will draw a current of up to 1A from the battery (or parallel connected batteries) with the highest voltage. The resulting charge current differential will ensure that all batteries will converge to the same state of charge. If needed, several balancers can be paralleled. A 48V battery bank can be balanced with three Battery Balancers.
Key Features
- Product Details: The Victron Energy Battery Balancer is a device that helps equalize the state of charge between two 12V batteries or parallel strings of 12V batteries connected in series to form a 24V or 48V battery bank.
- Operating Mechanism: When the charge voltage of the battery bank exceeds 27V, the Balancer activates and draws up to 1A of current from the higher voltage battery(ies), effectively balancing the charge levels across all batteries.
- Technical Specifications: The Balancer is designed for use with 12V lead-acid or lithium-ion batteries, featuring M8 terminals and a compact size of 7.0cm x 14.8cm x 21.0cm. It is made by Victron Energy and carries the model number BBA000100100.
