JX3-SS 3,000 lb Side Mount Drill Jack

JX3-SS 3,000 lb Side Mount Drill Jack

Meet the Trailer Valet JX 3-Squared Drill Jack - the most rugged, versatile, and high-performance jack on the market. Designed for users who demand durability, functionality, and aesthetic appeal, this jack stands apart with its heavy-duty construction and innovative features.

Equipped with a unique dual-pin handle for easy height adjustments, a quick-drop feature for faster lifting, and a custom independent dual-wheel design for superior movement, the JX 3-Squared offers unparalleled convenience. Whether you're towing, launching a boat, or navigating rough terrain, this jack adapts to your needs with its customizable height and stow options (Left, Right, Up, Down).

Designed for strength and durability, it boasts a high static weight capacity of up to 3,000 lbs, a robust gear ratio of 6:7, and Trailer Valet’s Signature Wrinkle Black Powder Coating with 700-hour corrosion resistance. With drill-powered functionality for effortless operation and future compatibility with the MV Series of trailer movers, this is more than just a jack - it’s the ultimate towing solution.

Built-In Safety Features: Our JX series includes clearly implemented Warning and Stop indicators located at the top of the inner tube. These markers are designed to prevent jack over-extension, keeping your equipment safer and extending product life.

Whether you’re a marine adventurer, an overland enthusiast, or someone who values premium features and rugged aesthetics, the JX 3-Squared is built to exceed expectations. Dominate any terrain with confidence - this is the last jack you’ll ever need.

Key Features:

• Heavy-Duty & Rugged: Built for extreme durability and high performance.
• Quick Drop Feature: Adjustable jack positioning for faster lifting.

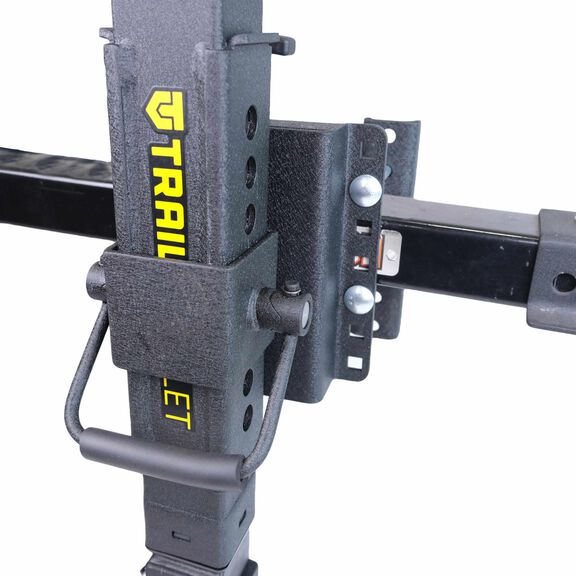

• Dual-Pin Handle for Bracket: Easy height adjustments and superior stability.
• Custom Independent Dual-Wheel Design: Ensures better movement and load distribution.
• Removable Wheel: Versatile configuration options.

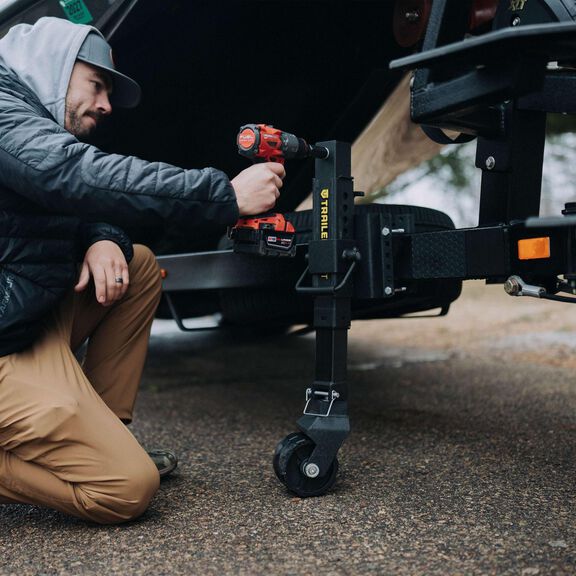

• Drill-Powered Operation: Faster and easier lifting with power drill compatibility.
• Protective Sleeve: Set between the inner and outer tube to extend product lifespan.
• Signature Wrinkle Black Powder Coating: 700-hour corrosion resistance.
• Gear Ratio: 6:7 for smooth operation.
• Customizable Stow Options: Left, Right, Up, Down for optimized positioning.
• Easy to Stow or Remove: Ideal for towing, launching, or harsh weather conditions.
• Max Frame Size: 5.0 inches Wide x 5.4 inches Tall
• Max Extension & Drop Distance: 8.5 inches Max Extension, 7.0 inches Drop Distance
• Total Retracted Height: 25.5 inches Total Extended Height: 34.0 inches
• Retracted Height (from mount flange to ground): 10.6 inches (with the Drop Bracket in the lowest position), 17.6 inches (with the Drop Bracket in the highest position)
• Extended Height (from mount flange to ground): 19.1 inches (with the Drop Bracket in the lowest position), 26.1 inches (with the Drop Bracket in the highest position)
• Bolt-on installation recommended

Specifications:

• Dynamic Lift Capacity with hand crank Lbs: 1500
• Dynamic Lift Capacity with Drill attachment and Drill Lbs: 750
• Static Tongue Weight lbs: 3000
• Mounting Type: Side
• Item Height Inches: 25.3
• Item Width Inches: 7
• Item Depth Inches: 8
• Item Net Weight lbs: 28
• Warranty: 1 Year Manufacturer's Limited Warranty

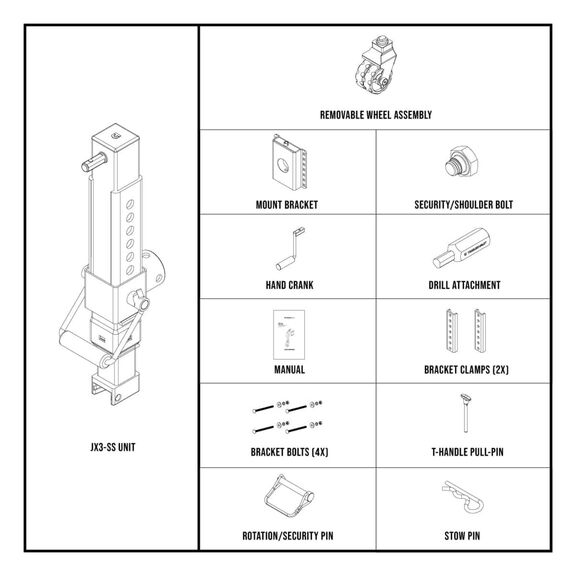

• Includes: Jack with Drop Handle, Crank Handle, Bracket and Hardware, Wheel Assembly, Trailer Valet Drill Attachment, Rotation Pin, and Cotter Pin
