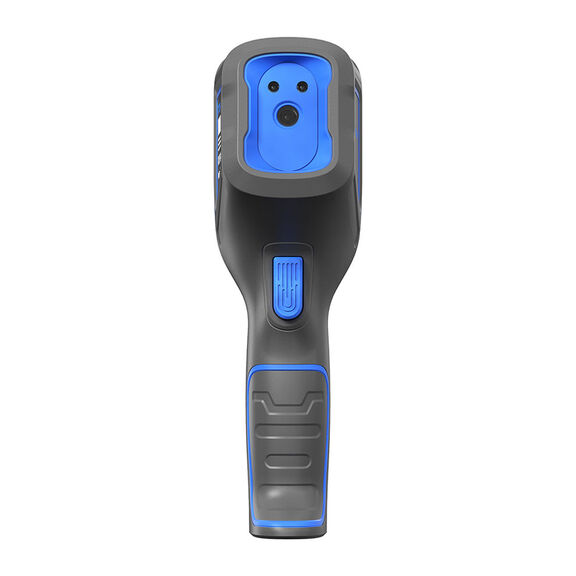

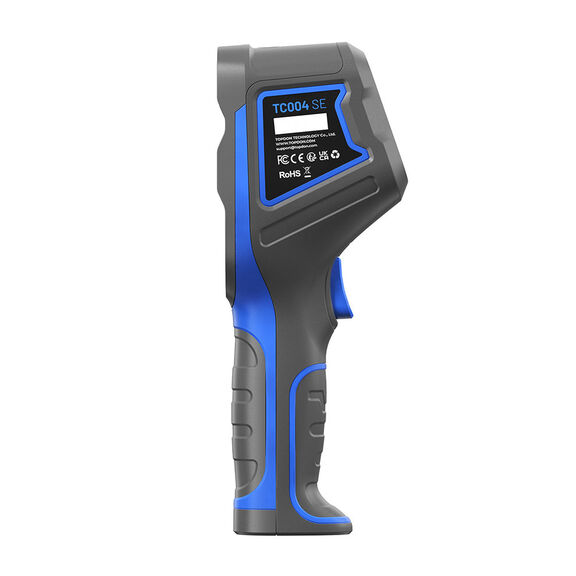

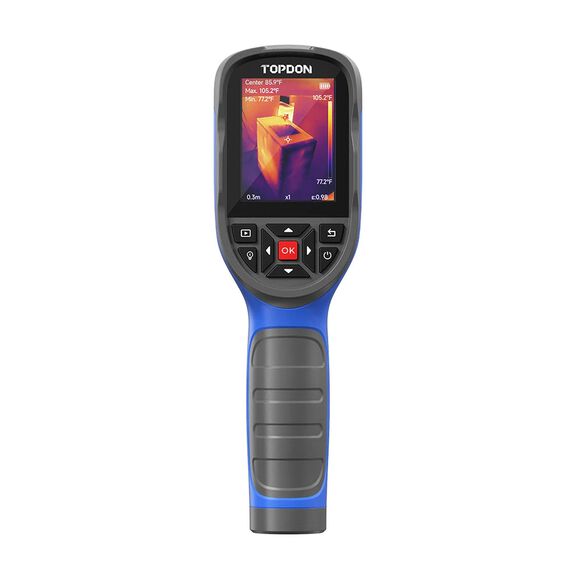

TOPDON TC004 SE Thermal Imaging Camera

TOPDON TC004 SE Thermal Imaging Camera

The TOPDON TC004 SE is a reliable, professional-grade thermal camera designed for DIY enthusiasts and industry professionals alike. It confidently locates and diagnoses problems across industrial, electrical, building inspection, HVAC, and automotive applications. With a 256x192 infrared resolution and a smooth 25Hz refresh rate, this camera produces detailed thermal images that make identifying heat anomalies fast and accurate.

The TC004 SE covers a wide measurement range of -4°F to 1022°F (-20°C to 550°C) with measurement accuracy of ±3.6°F (±2°C) or 2% of the reading, an NETD of less than 40 mK, and a spectral range of 8 to 14 µm. The 56° x 42° field of view and a 2.8-inch 320x240 display make it easy to frame and interpret thermal scenes in real time. Two built-in LED lights illuminate dark work areas, while a 1/4-20 tripod mount enables hands-free or remote monitoring setups.

Designed for extended fieldwork, the TC004 SE is equipped with a 5300mAh battery that delivers up to 16 hours of use at high brightness and an impressive 21 hours at low brightness. Onboard 32GB eMMC storage supports up to 160,000 images, and video recording capability lets you document maintenance history and demonstrate system performance to clients. The 4x digital zoom and PC-based image analysis software provide additional flexibility for detailed inspections and reporting.

With an IP54 protection rating, the camera stands up to dust and water splashes, making it suitable for demanding work environments. Whether you are checking electrical panels, scanning building envelopes for insulation gaps, diagnosing HVAC performance, or identifying automotive hotspots, the TC004 SE delivers the performance and stamina needed to get the job done.

Key Features

• 256x192 IR resolution at 25Hz refresh rate for clear, real-time thermal imaging
• Measurement range: -4°F to 1022°F (-20°C to 550°C) with ±3.6°F (±2°C) or 2% accuracy
• NETD <40 mK for high thermal sensitivity
• Up to 21 hours battery life (low brightness); 5300mAh capacity
• Built-in 32GB eMMC storage — stores up to 160,000 images
• Video recording for maintenance history and customer documentation
• 4x digital zoom (1x/2x/4x)
• Professional PC software for larger display and thermal data analysis
• 2.8-inch 320x240 display
• 56° x 42° field of view
• Two built-in LED lights for low-light environments
• 1/4-20 screw tripod mount
• IP54 protection rating
• Applications: industrial, electrical, building inspection, HVAC, automotive
