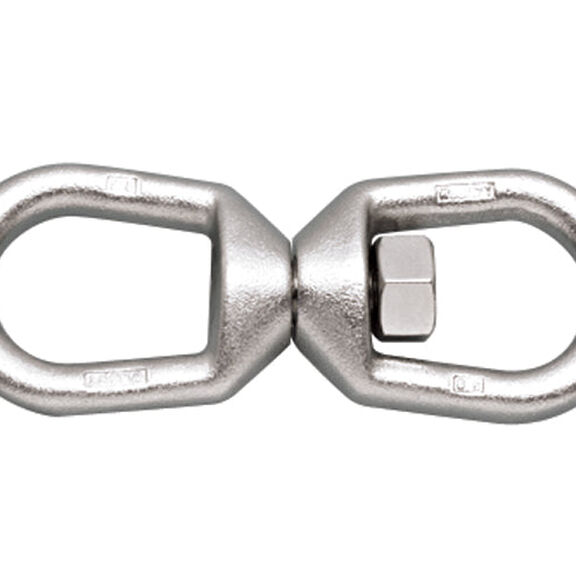

SUNCOR Fed. Spec. Eye and Eye Swivel
The Suncor Fed. Spec. Eye and Eye Swivel is a premium drop-forged rigging component crafted from Grade 316 stainless steel for outstanding corrosion resistance and durability. The 5/8" size (S0128-FS16) supports a working load limit of 6,000 lbs, making it ideal for demanding marine and industrial rigging applications. The swivel is specifically designed to relieve stress caused by twisting and knotting in chain, wire rope, or fibrous rope assemblies when pulled taut.
The extra-large eye opening accommodates oversized chain, wire rope, and cordage, providing versatile connectivity between different rigging components. This product is a positioning device and is not intended to swivel or rotate under load. It is manufactured in full accordance with Federal Specification RR-C-271F Type VII, Class 2 (except 316 stainless steel) and MIL-DTL-32655, ensuring compliance with rigorous government and military standards.
The Fed. Spec. Eye and Eye Swivel series is available in sizes ranging from 1/4" to 5/8" and is a Suncor exclusive product. All dimensions are nominal (+/- 3%) and are subject to change without notice. Retail and bulk packaging options are available.
Key Features
- Drop-forged construction for superior strength and reliability
- Grade 316 stainless steel for maximum corrosion resistance
- 5/8" size with 6,000 lb working load limit
- Extra-large eye opening for oversized chain, wire rope, and cordage
- Compliant with Federal Specification RR-C-271F Type VII, Class 2
- Compliant with MIL-DTL-32655 military specification
- Ideal for connecting chains, wire rope, or fibrous ropes
- Suncor exclusive product; available in sizes 1/4" to 5/8"
- Retail and bulk packaging available
