SS Pilot Pump 12V 60CU Type 1 Autopilot
Complete Your Purchase

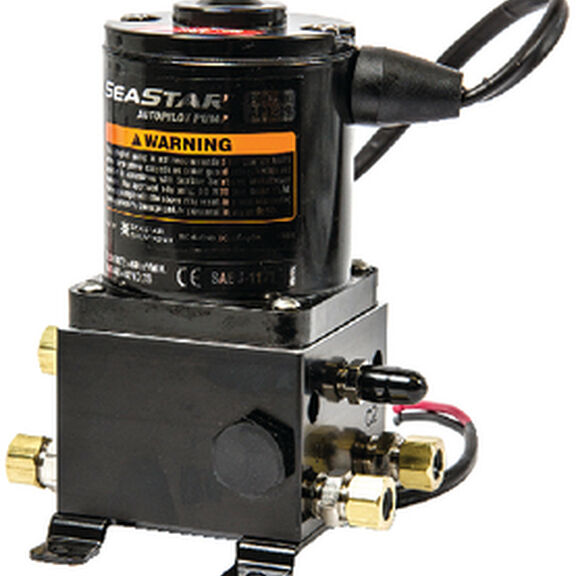

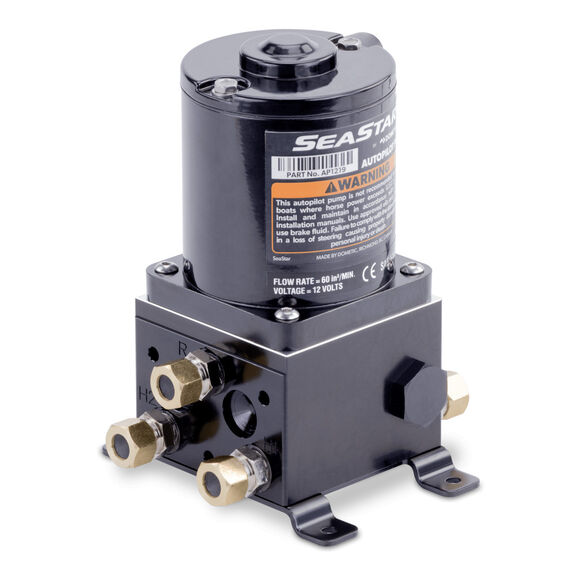

Seastar AP1219 SS Pilot Pump 12V 60CU Type 1 Autopilot
The Seastar AP1219 is a highly reliable, fixed flow, reversible autopilot pump set that uses an internal hydraulic gear pump to produce very little vibration or noise. This Type 1 pump is offered in 12-volt configuration with a 60 cubic inch per minute flow rate, making it suitable for a wide range of marine steering applications including inboard, outboard, and I/O systems.
Key Features
- Long life 12 VDC motor with extended-life brushes
- Compact design enabling simplified installation
- Low power consumption (4-8 amps typical at 12V)
- Superior corrosion resistance for marine environments
- Quiet operation producing minimal noise and vibration
- ABYC, CE, and J1171 compliant
- Mounting bracket included for flexible installation

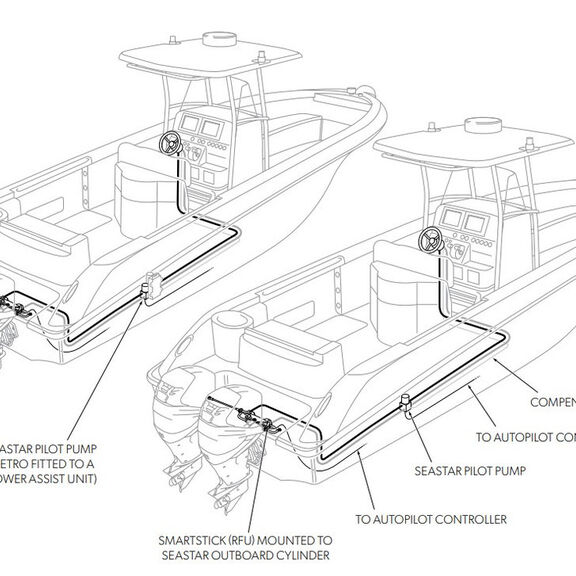

- Stand-alone or mounts to Seastar Power Assist unit without breaking hydraulic lines
- Direct replacement for other 12-volt autopilot pumps
The AP1219 is designed for maximum versatility, functioning as a plug-and-play solution for new installations or retrofit applications. Its ability to mount to existing Seastar Power Assist units eliminates the need to disturb existing hydraulic lines, making it an ideal upgrade path for vessels already equipped with Seastar steering systems.
