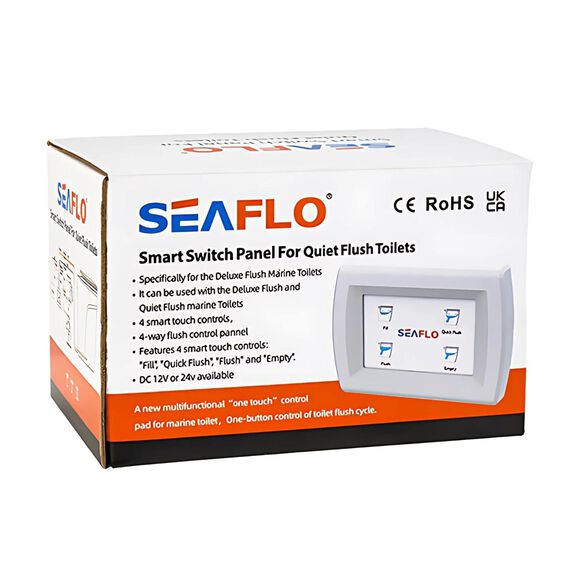

SEAFLO MARINE 12V/24V Smart Switch Panel for Marine Toilet Control

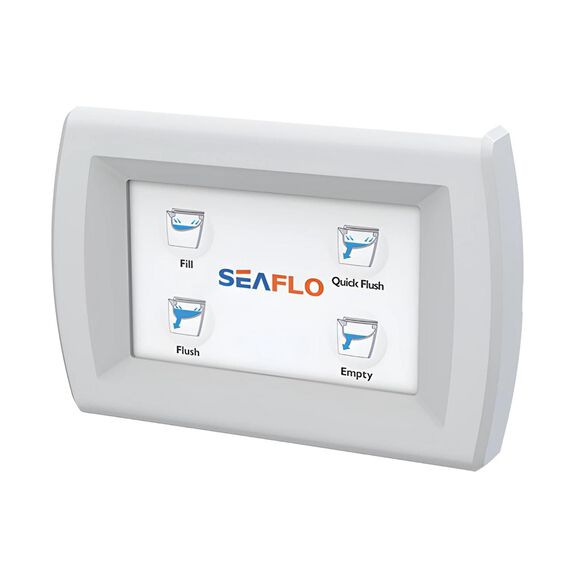

This SEAFLO MARINE smart switch panel is a multifunctional control interface designed for electric marine toilets, providing one-touch control of flush, quick flush, fill, and empty functions in sanitation systems compatible with SEAFLO and selected Jabsco models. It operates on both 12V and 24V DC electrical systems with a current rating of up to 20A at 12V or 10A at 24V and includes internal fuse protection (25A at 12V, 15A at 24V) with 14 AWG wiring requirements; the compact flush-mount panel measures 4.61" long × 3.16" wide × 0.96" high (11.7 × 8.0 × 2.4 cm) for space-efficient helm or head installation and uses brass contact material and normally open contacts for reliable signal switching in marine environments, though mounting screws and wiring harness are required but not included.
Key Features
- Multifunction touch controls – four intuitive touch options provide direct access to fill, flush, quick flush, and empty functions for convenient sanitation management.
- Dual voltage design – compatible with both 12V and 24V marine systems, meeting the needs of varied vessel electrical configurations.
- High current capacity – supports up to 20A at 12V or 10A at 24V with internal fuse protection to safeguard against overloads.
- Compact flush-mount panel – shallow 0.96" height and small footprint integrate easily into helm or head compartments without consuming excess space.
- Marine-grade construction – durable materials resist corrosion and humidity typical of harsh marine environments for long service life.
