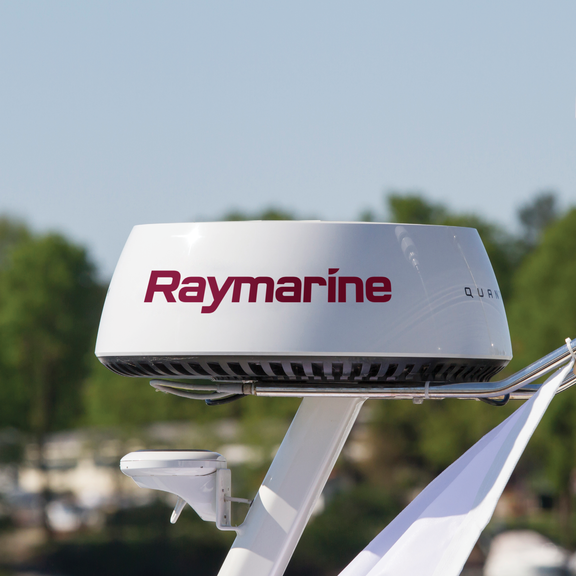

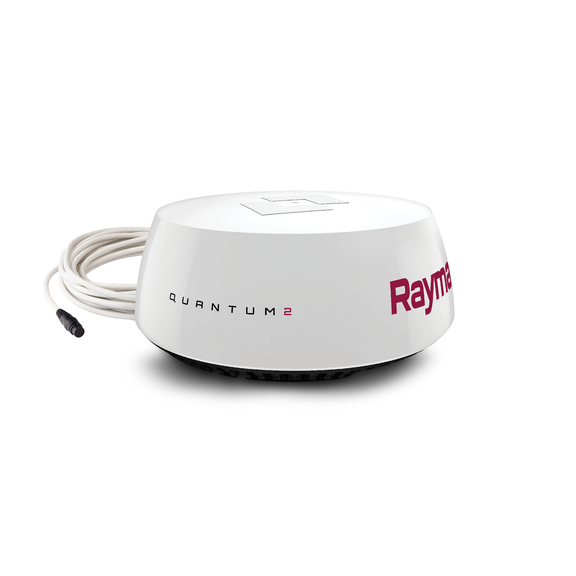

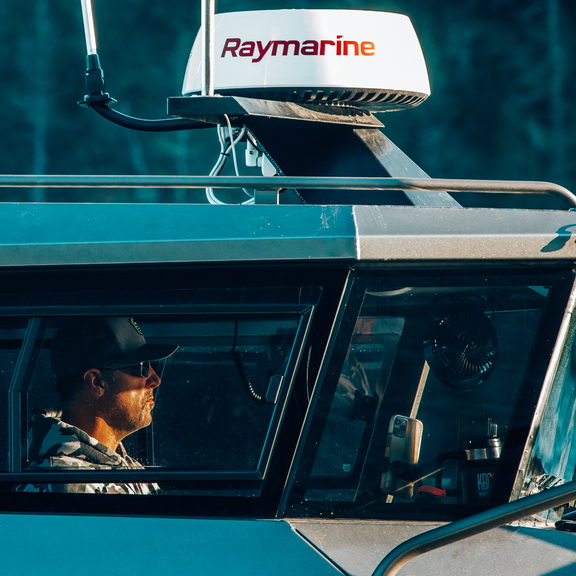

Quantum 2 Q24D Doppler 18" Radar with 15 Meter Power and Data Cable

RAYMARINE Quantum 2 Q24D Doppler Radar: Advanced Safety for Boaters

Navigate with Confidence

Enhance your boating experience with the RAYMARINE Quantum 2 Q24D Doppler Radar. This cutting-edge 18" radar unit delivers exceptional imaging and advanced Doppler collision avoidance technology, making it ideal for both long and short-range navigation.

Key Features:

• Next-Generation CHIRP Pulse Compression: Experience sharper target detection, whether offshore or in tight quarters. The Quantum 2’s CHIRP technology reduces clutter and ensures that more energy reaches each target for superior imaging.

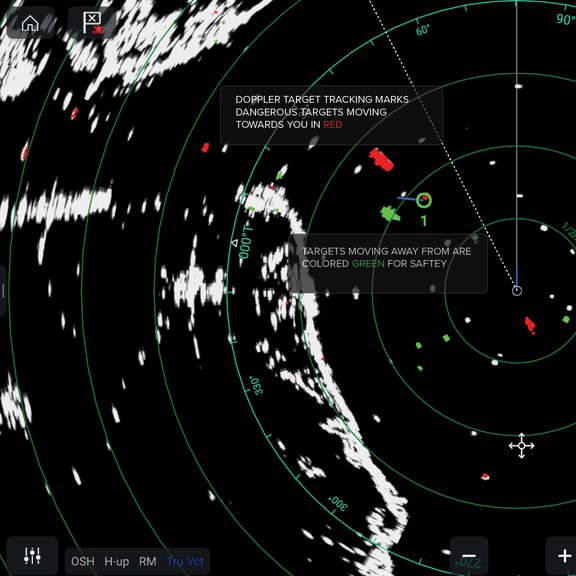

• Doppler Target Processing: Stay aware of your surroundings with the Doppler moving target display, which instantly identifies and color-codes vessels moving towards or away from you. This feature is crucial for navigating busy waterways safely.

• True Trails: Monitor the motion of nearby vessels with Raymarine’s True Trails feature, which provides a visual "wake" behind moving contacts. This historical data aids in making informed maneuvering decisions.

• Instant On: Get immediate radar awareness—the Quantum 2 powers up in seconds, so you're always ready for action.

• Automatic Target Acquisition: Enjoy fully automatic target tracking. Set up custom safety zones and receive alerts for new contacts entering these areas, helping you to maintain a safe distance from other vessels.

• Easy Installation: With integrated Wi-Fi and a slim power cable, installation is a breeze—even in tight spaces. The Quantum 2’s lightweight design makes it easy to mount anywhere on your boat.

• Low Power Consumption: Operate efficiently with minimal power usage—just 17 watts while transmitting and 7 watts on standby—extending your vessel's battery life when sailing.

• Safer Than Traditional Radars: Quantum 2 utilizes a low-power solid-state transmitter, providing safe emissions while weighing 50% less than conventional magnetron radars.

Specifications:

• Maximum Range: From 1/16 to 24 nautical miles
• Radome Diameter: 21 5/16"
• Waterproof Rating: IPX6
• Data Interface: Wi-Fi or wired Ethernet (RayNet)
• Display Compatibility: Works with a-Series, c-Series, e-Series, gS Series, and eS Series multi-function displays

What’s in the Box:

• Quantum™ 2 Radome
• 10m (32.8ft) Power Cable
• M8 Mounting Bolts with Spring Washers and Flat Washers
• Documentation Pack (including mounting template)

Equip your boat with the RAYMARINE Quantum 2 Q24D Doppler Radar and navigate with confidence, knowing you have the best technology at your fingertips. Ensure safer journeys on the water with superior radar capabilities tailored for boaters like you!
