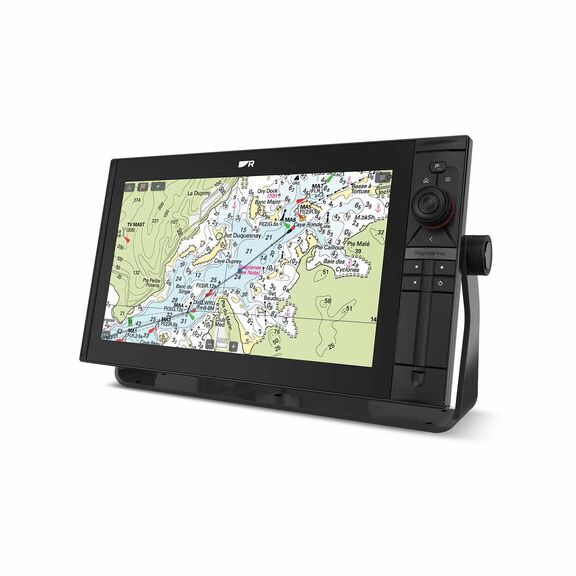

AXIOM 2 PRO 16 RVM Multifunction Display with LightHouse Charts North America

Axiom 2 Pro combines chartplotter, sonar, radar, autopilot, and video into a powerful all-in-one navigation system.

With Axiom 2 Pro, you can navigate smarter and expand your system thanks to the super-intuitive LightHouse operating system. Plan your next trip and get underway confidently with Axiom 2 Pro's HybridTouch™ — a simple touchscreen and keypad experience that keeps you in control even when seas get rough. Interchangeable keypads let you choose between a dedicated Evolution autopilot keypad or user-programmable soft keys, so your helm works exactly the way you do.

Find more fish with built-in RealVision® MAX CHIRP sonar technology, delivering DownVision, SideVision, RealVision 3D, and conical CHIRP sonar — upgraded with increased range, better resolution, and sharper fish targets than previous generations. A 600-watt traditional CHIRP fishfinder handles coastal waters while the 1kW dual-channel CHIRP fishfinder takes you deep offshore with confidence.

The 15.6-inch IPS FHD display delivers 1920 x 1080 resolution at 1200 nits, with HydroTough™ nano-coating that repels water for reliable touchscreen control and outstanding sunlight visibility. Smart backlighting and an ambient light sensor automatically adjust brightness from full sun to low-light evening conditions. Up to 16 simultaneous touch points are supported, and the display's 88-degree viewing angles keep your screen readable from anywhere at the helm.

Connectivity is built for a full system build-out: two RayNet Gigabit Ethernet ports, NMEA 2000, multiband Wi-Fi (2.4GHz/5GHz), Bluetooth v4.0, USB Micro-B, HDMI out, analog video and audio inputs, and a TNC external GPS antenna port. Internal 64GB solid-state storage and dual front-mounted MicroSDXC card slots keep your charts and data close at hand. Built-in GPS supports GPS, Galileo, GLONASS, and BeiDou with a 10Hz refresh rate for precise, real-time positioning. The unit operates on 8–32V DC and is rated IPx6/IPx7 waterproof with an operating range of –25°C to +55°C.

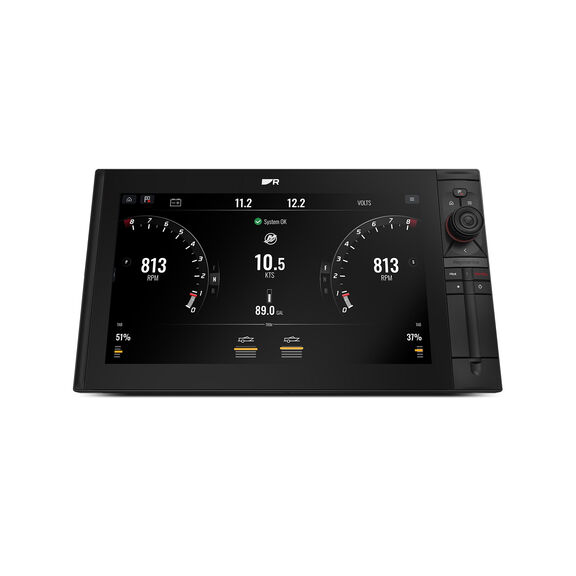

Expand your awareness with Quantum 2 or Cyclone radar for Doppler target tracking, FLIR thermal cameras for night navigation, and ClearCruise augmented reality with the CAM300 and AR200. Connect with Mercury SmartCraft or Yamaha Command Link for advanced engine integration. Built-in Wi-Fi lets you view and control Axiom 2 Pro via the Raymarine Mobile App. Stream Netflix and Spotify, control Fusion, JL Audio, and Rockford Fosgate marine audio systems, or mirror your display on the big screen via HDMI output. Expand capabilities further with LightHouse third-party apps from Raymarine's marine technology partners.

This variant includes preloaded LightHouse Charts North America and one free year of LightHouse Charts Premium Subscription, so you're chart-ready right out of the box.

Key Features

• Find more fish with built-in RealVision® MAX CHIRP sonar: DownVision, SideVision, RealVision 3D, and conical CHIRP
• 600W traditional CHIRP fishfinder for coastal waters + 1kW dual-channel CHIRP for deep-water performance
• 15.6-inch IPS FHD display (1920 x 1080) at 1200 nits with 88-degree viewing angles
• HydroTough™ nano-coating repels water for reliable touchscreen control and superior sunlight visibility
• Up to 16 simultaneous touch points supported
• Powerful 6-core processor with intuitive LightHouse operating system
• Confident HybridTouch™ control plus an interchangeable autopilot keypad or user-programmable soft keys
• Built-in GPS: GPS, Galileo, GLONASS, BeiDou — 10Hz refresh rate
• 2 RayNet Gigabit Ethernet ports, NMEA 2000, multiband Wi-Fi, Bluetooth v4.0, HDMI out
• 64GB internal solid-state storage + 2 front-mounted MicroSDXC card slots
• IPx6/IPx7 waterproof rating, operating range –25°C to +55°C, 8–32V DC
• Expandable system: compatible with Quantum/Cyclone radar, FLIR thermal, ClearCruise AR, AIS, VHF, and autopilot
• Includes preloaded LightHouse Charts North America + 1 free year Premium Subscription
• Stream Netflix, Spotify, and more; control marine audio; mirror to external displays via HDMI
