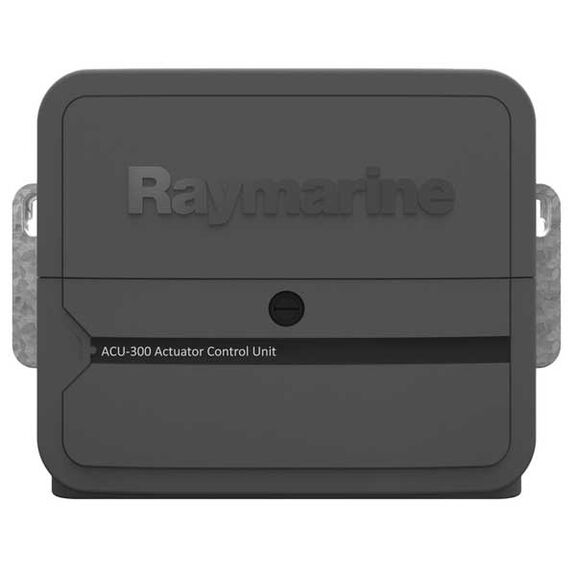

ACU-300 Actuator Control Unit
Model #
14842918
Mfg #
E70139
$2,249.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
RAYMARINE
$27.49
-
$164.99
Price reduced from
$69.99
to
-
Price reduced from
$164.99
to
The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus.
- Drive current output: Maximum continuous 5 A at supply voltage
- Drive clutch output: No clutch connection
- Connections:
Rudder reference sensor
Sleep switch
Power
Solenoid drive out / return
Ground - Nominal supply voltage: 12V or 24V
- Operating voltage range: 10.8 V to 31.2 V dc
- Power consumption (standby) - main power supply: 300 mA (12/24V)
- Power consumption (standby) - SeaTalkng power supply: 20 mA (12V)
- SeaTalkng LEN (Load Equivalency Number): 1
- SeaTalkng Power out: 3 A at 12 V (fuse protected at 3 A)
- Data connections: SeaTalkng
- Installation environment:
Operating temperature: -20ºC to +55ºC (-4ºF to +131ºF)
Storage temperature: -30ºC to +70ºC (-22ºF to +158ºF)
Relative humidity: max 93% - Waterproof rating: Drip resistant
- Dimensions: 11.2" x 5.5" x 8.3" (285 mm x 211.5 mm x 64.5 mm)
- Weight: 8.48 lbs. (2.2 kg)
- Conformance:
Europe: 2004/108/EC
Australia and New Zealand: C-Tick, Compliance Level 2
