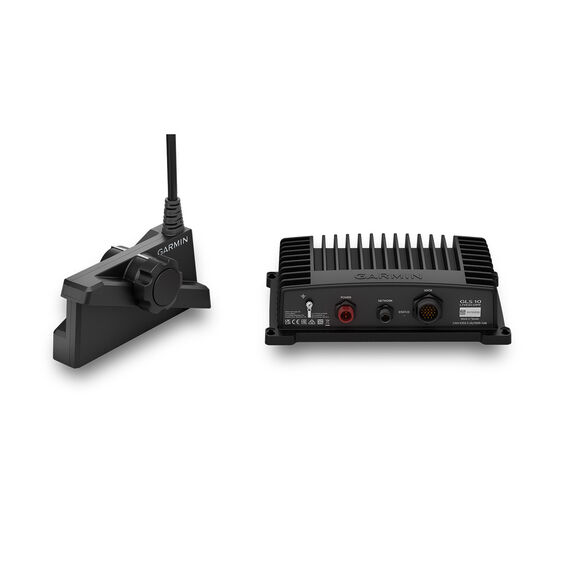

LiveScope™ Plus System with GLS 10™ Sonar Box and LVS34 Transducer

Live sonar technology has fundamentally changed the way serious anglers find and catch fish — and the Garmin LiveScope™ Plus System represents the current state of the art in that technology. Where traditional sonar shows you a history of what was beneath the boat seconds ago, LiveScope shows you what is happening underwater right now, in real time, with enough resolution and target separation to watch individual fish respond to your lure as you work it through the water column. The LiveScope Plus is not an incremental update to an existing product — it delivers meaningfully improved image resolution, reduced sonar noise, and enhanced transducer sensitivity that make fish identification and structure interpretation faster, clearer, and more actionable than the original LiveScope system. For tournament anglers, serious freshwater and saltwater fishermen, and any angler who wants to fundamentally understand what is happening beneath the boat, LiveScope Plus is the definitive live sonar system on the market.

What Live Sonar Actually Is — And Why It Changes Everything.
Traditional 2D sonar, CHIRP sonar, and even conventional side imaging all share a fundamental limitation: they display historical data. The sonar arch on a traditional fishfinder represents where a fish was when the transducer passed over it — by the time you're reading the display, the fish has moved. Structure appears only after the boat has traveled over it. Fishing decisions are made on data that is always at least seconds old.

LiveScope operates on an entirely different principle. Using high-frequency broadband sonar scanning in a narrow beam, LiveScope delivers a continuous, real-time image of the water column in front of, below, or around the boat — updated fast enough that the display is a live picture of underwater activity, not a historical record. The implications for fishing are profound:

• Watch your lure descend through the water column in real time
• See fish approach, follow, and strike your lure as it happens
• Observe fish behavior — suspended, active, or inactive — before making presentation decisions
• Identify structure, cover, and bottom composition in real time as you approach
• Watch how fish respond to specific lure actions and adjust your retrieve accordingly

This capability — seeing the underwater environment as it exists right now — fundamentally changes fishing from a probabilistic exercise into an observational one.

LiveScope Plus vs. Original LiveScope — What's Actually Improved.
The Plus designation represents genuine engineering advances over the original LiveScope system, not a cosmetic update:

• Improved Sonar Resolution: Sharper, more detailed images with finer target discrimination — individual fish appear more distinctly defined against bottom and structure
• Reduced Sonar Noise: Cleaner image with less background interference, making it easier to identify targets and understand what you're seeing
• Enhanced Transducer Sensitivity (LVS34): The new LVS34 transducer delivers better target separation — the ability to distinguish between fish that are close together, fish near structure, or multiple fish at different depths that would appear merged on lower-sensitivity systems
• Improved Color Palette Options: Expanded vivid color palette selection for enhanced target differentiation and personal preference optimization
• GLS 10™ Compatibility: The LVS34 transducer is backward compatible with existing GLS 10™ black boxes — owners of the original LiveScope system can upgrade to LiveScope Plus performance by replacing only the transducer, without replacing the black box

Three Viewing Modes — Complete Underwater Situational Awareness.
The LiveScope Plus system provides three distinct sonar viewing modes, each optimized for a specific fishing application. Switching between modes is done directly from the compatible Garmin chartplotter interface:

Forward Mode — See What's in Front of the Boat.
Forward Mode orients the transducer to scan in front of and slightly below the boat, providing a real-time view of the water column and bottom structure ahead of the vessel's direction of travel. This is the mode that has revolutionized finesse fishing, dock shooting, and deep structure fishing — anglers can see fish position relative to structure before making a cast, watch the lure enter the frame, and observe fish respond to the presentation in real time. Forward Mode is particularly transformative for:

• Dock and laydown fishing — see fish position relative to structure before casting
• Deep ledge and offshore structure fishing — identify fish position on structure in real time
• Suspended fish fishing — see fish in the water column and deliver lures to exact depth
• Sight fishing in low visibility — see fish that are invisible from the surface

Down Mode — Direct View Beneath the Boat.
Down Mode orients the transducer to scan directly beneath the boat, providing a live view of the water column and bottom below the vessel. Unlike traditional 2D sonar that shows only a side-profile arch representation, LiveScope Down Mode provides a photographic-quality real-time image of bottom structure, cover, and fish directly below — with sufficient resolution to identify individual fish, baitfish schools, grass beds, rock piles, and bottom composition in real time. Down Mode excels for:

• Vertical jigging — watch your lure sink and fish respond in real time
• Offshore structure fishing — see fish position on bottom structure directly below
• Anchored or stationary fishing — live view of activity beneath the boat
• Bottom composition identification — distinguish hard bottom, soft bottom, grass, and rock in real time

Perspective Mode — Top-Down Aerial View.
Perspective Mode provides a unique top-down view of the underwater environment — a bird's-eye perspective that shows fish position and movement relative to bottom structure in a spatial layout that is immediately intuitive. This mode is particularly useful for understanding fish positioning relative to structure in a spatial context that is difficult to interpret from a side-profile view. Perspective Mode requires the dedicated Perspective Mode mount included in the system package.

GLS 10™ Sonar Black Box — The Processing Brain.
The GLS 10™ Sonar Black Box is the processing unit at the center of the LiveScope Plus system. Rather than integrating sonar processing into the chartplotter head unit — which limits processing power and requires purchasing a new chartplotter for sonar upgrades — the black box architecture separates the high-demand sonar processing into a dedicated unit that connects to the chartplotter via the Garmin Marine Network. This architecture provides several advantages:

• Dedicated Processing Power: The GLS 10™ devotes its full computing resources to sonar processing — the high-demand real-time image generation that LiveScope requires — without competing with chartplotter navigation processing
• Chartplotter Independence: As sonar technology advances, the black box can be updated or replaced without replacing the chartplotter head unit
• Network Integration: The GLS 10™ connects to the Garmin Marine Network, allowing the LiveScope image to be displayed on any compatible Garmin chartplotter on the network — including units at a secondary helm
• Transducer Upgradability: The black box accepts transducer upgrades — owners of original LiveScope systems upgrade to LiveScope Plus by replacing the transducer only, without replacing the GLS 10™

LVS34 Transducer — The Sensing Element of LiveScope Plus.
The LVS34 is the new LiveScope Plus transducer — the physical sensing element that generates and receives the sonar signals that the GLS 10™ processes into the live image displayed on the chartplotter. The LVS34's enhanced sensitivity and improved element design are the source of the LiveScope Plus system's improved resolution, reduced noise, and better target separation compared to the original LVS32 transducer. Key LVS34 characteristics:

• Improved Sonar Element: Redesigned transducer element delivers higher sensitivity and better target separation
• Multi-Mode Capability: The LVS34 supports all three viewing modes — Forward, Down, and Perspective — with mount orientation determining the active mode
• GLS 10™ Compatible: Direct replacement for the original LVS32 on existing GLS 10™ installations

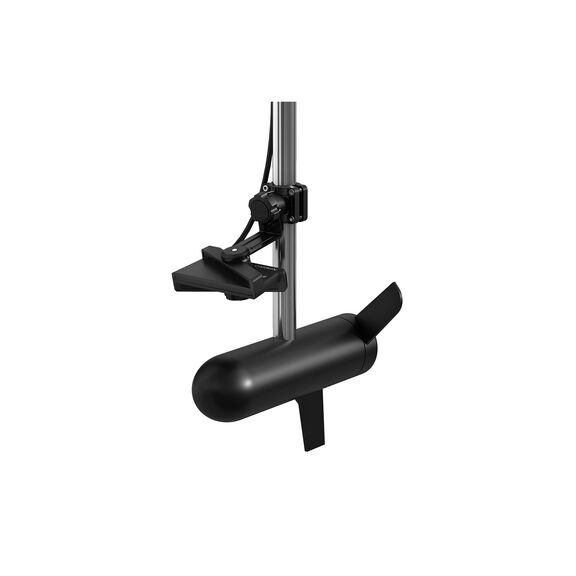

• Multiple Mount Options: Included mount hardware supports trolling motor shaft, barrel/pole mount, and Perspective Mode installations

AHRS — Stable Sonar Image in Moving Water.
One of the most significant practical limitations of live sonar in real fishing conditions is image instability from boat movement. In choppy water, with wind, or in current, a transducer that moves with every wave produces a sonar image that shifts, rolls, and blurs — making target identification and lure tracking difficult precisely when stable water isn't available. The Attitude Heading Reference System (AHRS) integrated into the LiveScope Plus system addresses this directly. AHRS uses internal sensors to continuously measure the transducer's orientation — pitch, roll, and heading — and automatically compensates the sonar image to correct for motion-induced shifts. The result is a stabilized live sonar image that remains steady and readable even in choppy conditions, allowing effective fishing in the conditions where anglers most need live sonar guidance.

Compatible Chartplotter Required — Understanding the System Architecture.
The LiveScope Plus System requires a compatible Garmin chartplotter or display for operation — the GLS 10™ black box does not have its own display. The system connects to the chartplotter via the Garmin Marine Network (Garmin Ethernet), and the live sonar image is rendered on the chartplotter screen. Compatible displays include a wide range of current Garmin GPSMAP, echoMAP, and STRIKER Plus series units. Verify chartplotter compatibility against Garmin's current compatibility list before purchase — not all Garmin chartplotters support LiveScope, and network connection requirements vary by model.

Vivid Color Palettes — Optimized for Conditions and Preference.
The LiveScope Plus system offers multiple color palette options for the sonar display, allowing anglers to select the color scheme that provides the best target contrast and readability for their specific water conditions, ambient light, and personal preference. Different palettes optimize target separation against different bottom types and water clarity conditions — the ability to switch palettes is a practical fishing tool, not just an aesthetic option.
