PoE Injector for FLIR Joystick Control Units
Complete Your Purchase

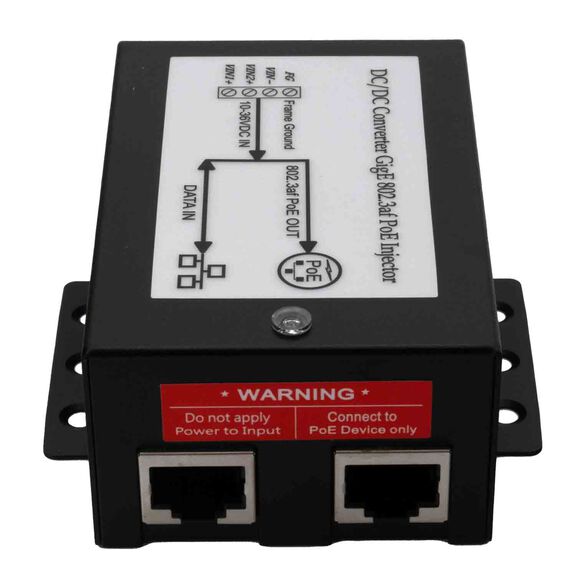

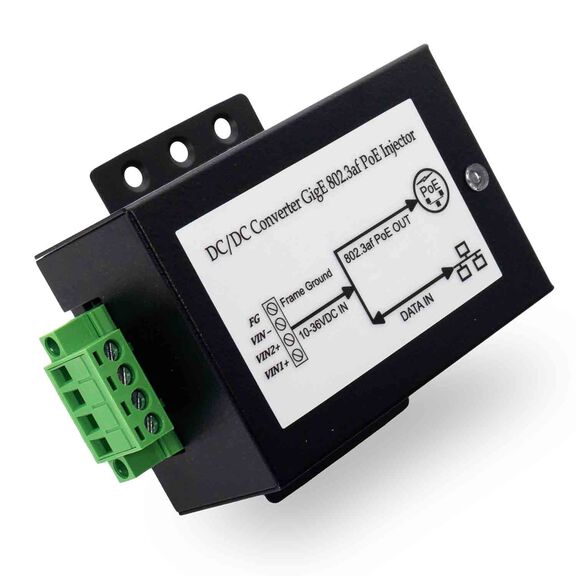

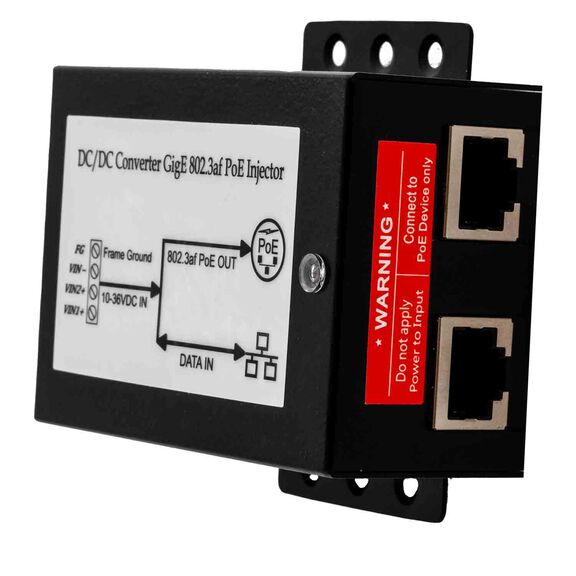

Power and connect your Ethernet devices over a single cable with the FLIR PoE Injector. Built for equipment that doesn't receive power from an external source, it adds IEEE 802.3af Power over Ethernet to a standard network line. It delivers up to 15.4 W to FLIR JCU-3 and JCU-4 joystick control units and other 802.3af PoE devices. The injector works with both 12V and 24V DC systems across a 10 to 36V DC operating range, so it fits easily into boat, RV, vehicle, or shop electrical setups. Its RJ-45 data and PoE output ports support up to 5 Gigabit networking for fast, responsive connectivity. A pluggable terminal block with a frame-ground connection keeps wiring tidy, and the compact metal housing with flanged mounting tabs installs securely in a cabinet or behind a panel. Rated from -40°F to 104°F, it's built to keep working through cold mornings and warm afternoons alike.
Key Features
- High-Speed Networking: RJ-45 data input and PoE output ports support up to 5 Gigabit (1000/5000 Mbit/s)
- PoE Standard: Conforms to IEEE 802.3af, supports PoE classes 0 to 3 with 15.4 W maximum output
- Flexible DC Input: 12V or 24V DC nominal, 10 to 36V DC operating range
- FLIR Compatible: Powers FLIR JCU-3 and JCU-4 joystick control units

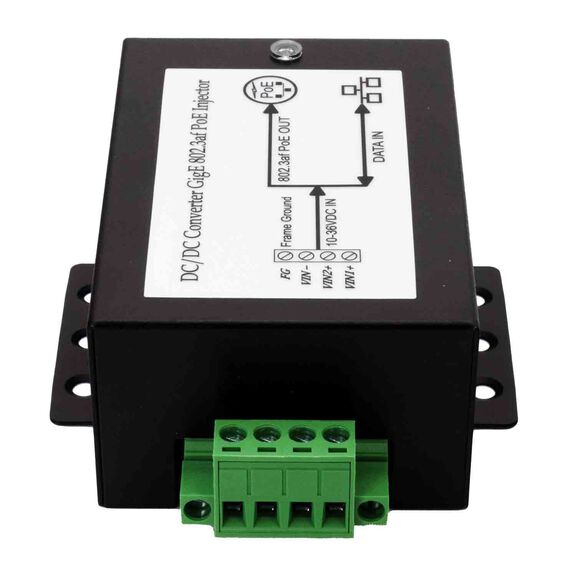

- Clean Wiring: Pluggable terminal block with dual positive inputs, negative, and frame ground
- Rugged Mounting: Metal enclosure with flanged mounting tabs
- Wide Temperature Range: Operates from -40°F to 104°F
- Compact Size: 3.66 in. L x 2.91 in. H x 1.29 in. D; weighs 0.44 lb
