New

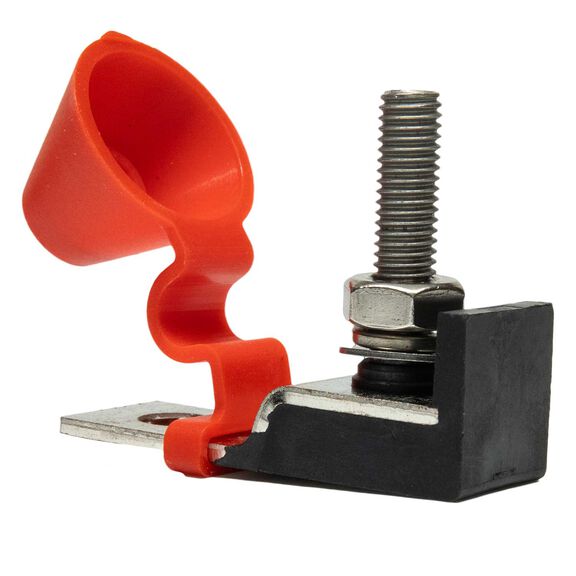

MRBF Terminal Fuse Block - Single Output, 30-300 A
Model #
21481361
Mfg #
3601
$19.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
New
MRBF Terminal Fuse Block - Single Output, 30-300 A
Model #
21481361
Mfg #
3601
$19.99
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
EGIS MOBILE ELECTRIC MRBF Terminal Fuse Block - Single Output, 30-300 A
Single terminal Simplifies medium- and high-amp circuit protection by mounting directly to battery or busbar terminals. Ignitionis protected when used with Egis Mobile Electric MRBF fuses. Compact, high-amp fuse protection—appropriate for DC Main, inverter, windlass, and bow thruster circuit protection. Mounts conveniently on XD Relay I/O terminals, battery terminals, and high-ampere bus-bar terminals.
Key Features
- Compatible with 30-300 Amp MRBF fuses
- Stainless steel terminal stud and hardware
- Silicone high-temp rated protective cover included
- Designed with high temperature materials and stainless steel self-locking hardware allow mounting anywhere on the vehicle
- Fuse Holder Mounting Hole: Clearance for 3/8" (M10), (10.3 mm)
- Stud Hardware Material: Stainless Steel
- Fuse Terminal Stud Size: M8 (5/16")
- Max Terminal Stud Torque: 14.7 in-lbs (20 N-m)
- Cable Terminal Stud Hole Size: M8 (5/16")
- Maximum Temperature: 200 °C
- Conductor Material: Tin Plated Copper Alloy
- Protective Cover Material: Silicone Rubber
- Base Insulator Material: PPS
- CE Compliance: ISO 8846
Compatibility
REPLACES BLUE SEA SYSTEMS #5191
