Charge Relay Switch, ACR 12/24V
Model #
20800512
Mfg #
7610
$109.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
MADE IN THE USA
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
SEAFIT
$1.99
-
$2.99
Price reduced from
$11.49
to
-
Price reduced from
$16.49
to
ANCOR
$5.74
-
$46.99
Price reduced from
$32.99
to
-
Price reduced from
$46.99
to
Select Items on Clearance

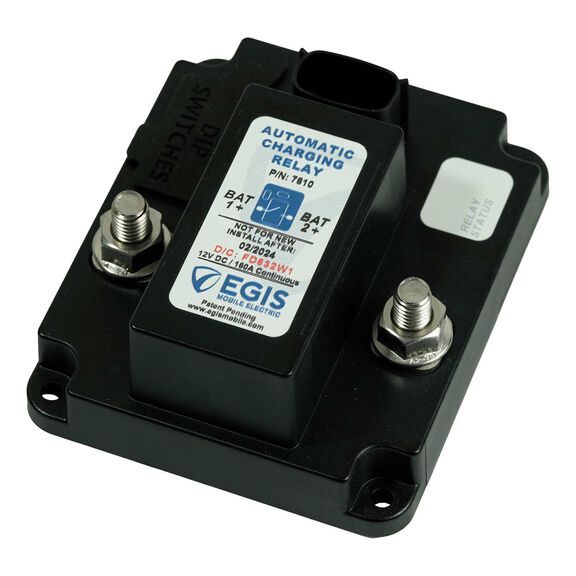

EGIS MOBILE ELECTRIC Charge Relay Switch, ACR 12/24V
Eliminates Dead Start Batteries by sharing charging between two batteries and isolating them when no charge sources are present. Supports Multiple Engines or Independent Charge Systems by incorporating two independent start or engine-isolation inputs to isolate charge sources when both are active, maximizing charging performance. Protects Electrical System Cascading Faults with optional lockout to prevent closing if one terminal is connected to a battery with a shorted cell.
Features:
- Ultra-low power draw, compared to typical ACRs (7-10 mA) vs 7610 ACR @ 1.3 mA, will not deplete batteries even after extended electrical system downtime
- Integrated sealed plug eliminates corrosion, includes Deutsch/Amphenol DTM connector harness
- Sealed unit, stainless steel hardware, high temperature materials allow mounting anywhere
- Additional Low Amp Output can be used to report device status remotely, or drive a secondary relay for charging a battery bank without a charge source
- Start Assist input option to ensure maximum cranking amps available by allowing manual connection of batteries via a remote switch
- Nominal Voltage (Vdc): 12Vdc
- Continuous Current: 160 Amps
- Max 5 Minute Current: 240 Amps
- Cable Size To Meet Ratings: 1/0 AWG
- Maximum Cable Size: 2/0 AWG
- Terminal Stud Size: M8x1.25
- Hardware Material: Stainless Steel Self-Locking
- Ingress Protection: IP65
- Max Operating Temperature: 105 °C (221F)
- Min Operating Temperature: -40C (-40F)
- Operating Current (mA) Standby / Open: 1.3
- Overvoltage Protection: 17 Vdc
Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Amperage
160 Amps
Compatibility
REPLACES BLUE SEA SYSTEMS #7610
ISO Approved
IP67
Mounting Hardware
4x #8 Screws Included
Type
Relay
Warranty
Four Years
