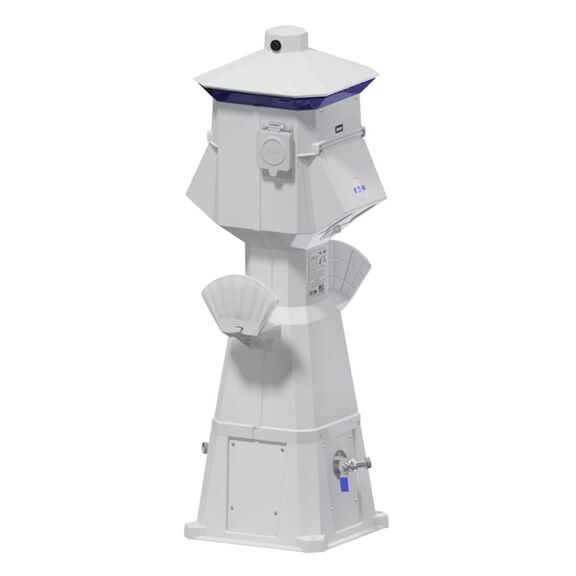

Eaton's very popular Lighthouse Power Pedestal is designed for commercial or residential marinas.
This popular shore power pedestal is meant for the average commercial or residential marina and has over 150,000 units installed worldwide. Eaton’s Lighthouse is recognized for its practicality and exceptional durability.
Removable head is perfect for protection of equipment during strong storms or on flood-prone fixed docks. Thermo-magnetic overcurrent protection breakers included. Lots of options available for metering, lighting, communication and electrical connections.
Includes
- Four (4) 30A, 125V shore power receptacles
- One (1) 20A, 125V GFCI-protected duplex receptacle
- Dual water with 1/4 turn ball valves and 3/4" hose bibs
- Photocell-controlled LED lighting with 360° amber lens
- If communications is desired please use part # LDU2200220021ES
Key Features
- White heavy resin housing with UV-resistant acrylic polymer coating
- Lockable weatherproof doors
- Dual hose and cable brackets
- Copper bus
- Hingeless base providing easy access to bus bar
- Removable head for protection of equipment
- Eaton circuit breaker protection for all receptacles and lighting
- Dimensions: 44"H x 13 11/16"W x 13 3/4"D
- Approvals: ANSI/UL 231, NFPA 303 DTD, UL/cUL Listed , NEMA 3R rating
- Meets electrical code requirement for shore power access
Amperage
Maximum 250 Amps
Length
44 Inches
Type
Dockside Power
Voltage
100-240 Volts
Warranty
One Year
,
Five Years on the Housing
