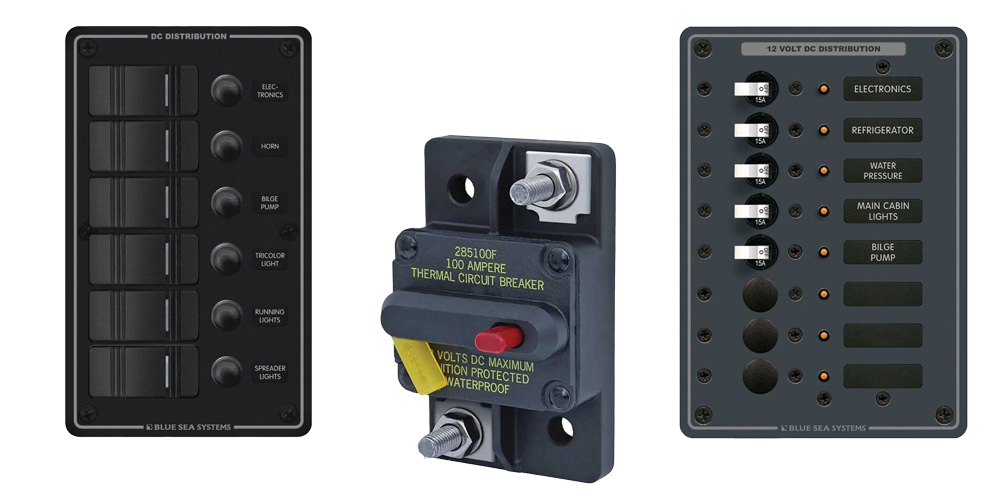

From fishfinders and multifunction displays to running lights and bilge pumps, there’s plenty of gear on your boat that needs power. Marine circuit breakers protect electrical circuits from overloads and short circuits and are specifically built to survive the marine environment — saltwater exposure, vibration, and temperature cycling that would destroy a standard household breaker in a season. We’ve pulled together our top three circuit breakers and panels for a safer electrical system on your boat in 2026.
Understanding why marine-grade circuit protection matters: when a circuit draws more current than it was designed to carry — from a failing motor, a pinched wire, or too many accessories on one circuit — the resistance in the wiring generates heat. Without a breaker to interrupt the circuit, that heat builds in the wire insulation until it ignites, which is how electrical fires start on boats. A properly sized marine circuit breaker trips before the wiring reaches that temperature and does so reliably across the temperature range, vibration, and humidity that a boat’s electrical system experiences over years of service.
- For an above-deck rocker style panel: Blue Sea Systems Water Resistant Circuit Breaker Panel, 6-Position
- For a below-deck traditional panel: Blue Sea Systems Traditional Metal DC Circuit Breaker Panel, 8-Position
- For a surface mount circuit breaker and switch combo: Blue Sea Systems 285 Series Thermal Circuit Breakers, Surface Mount

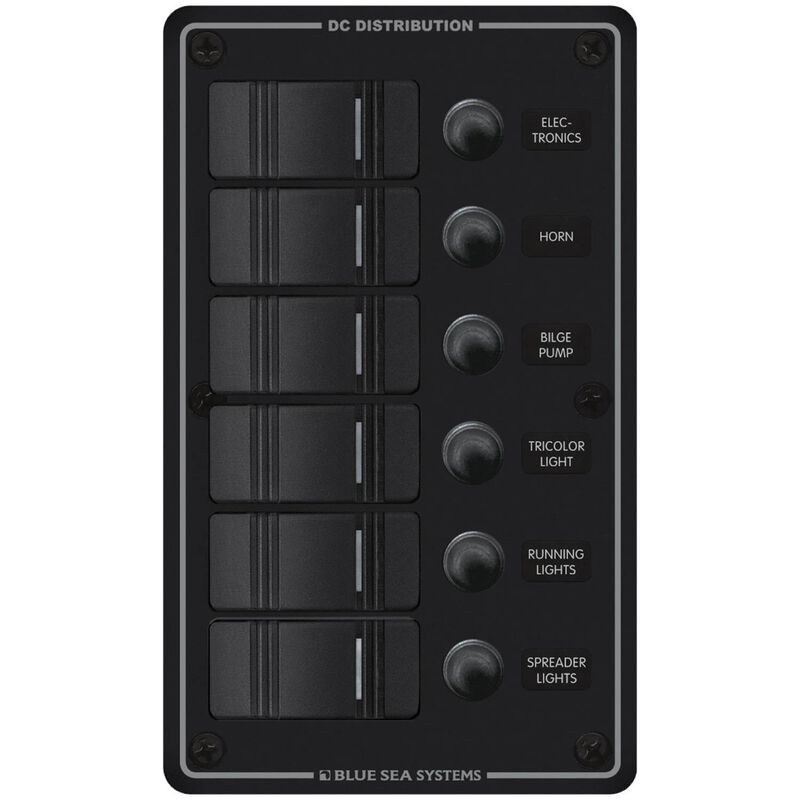

Blue Sea Systems Water Resistant Circuit Breaker Panel, 6-Position
Top features: Blue Sea Systems’ Water Resistant 6-Position Circuit Breaker Panel is built to be exposed to the elements including washdowns and saltwater spray, making it the right choice for a helm panel mounted on deck or in a location where moisture exposure is frequent. The included gasket seals the area behind the panel and protects the wiring connections from water intrusion — a critical detail because corrosion at connector points behind a panel is one of the leading causes of electrical failures on boats. The modern Contura rocker switches are LED-lit to indicate circuit status at a glance, and each switch incorporates a push-button 15A breaker, combining switching and protection in each position. The included 60-label set makes it straightforward to label each circuit so any crew member can identify and control systems quickly. All six positions are independent 12/24V DC circuits with a combined panel rating of 45 amps.
What makes it stand out: Lifetime warranty and designed specifically for above-deck applications where saltwater spray, rain, and washdown exposure are routine.
Specifications:
- Above / Below Deck: Above Deck
- Amperage: 45 Amps
- Switch Quantity: 6
- Voltage: 12/24 Volts DC
- Warranty: Lifetime

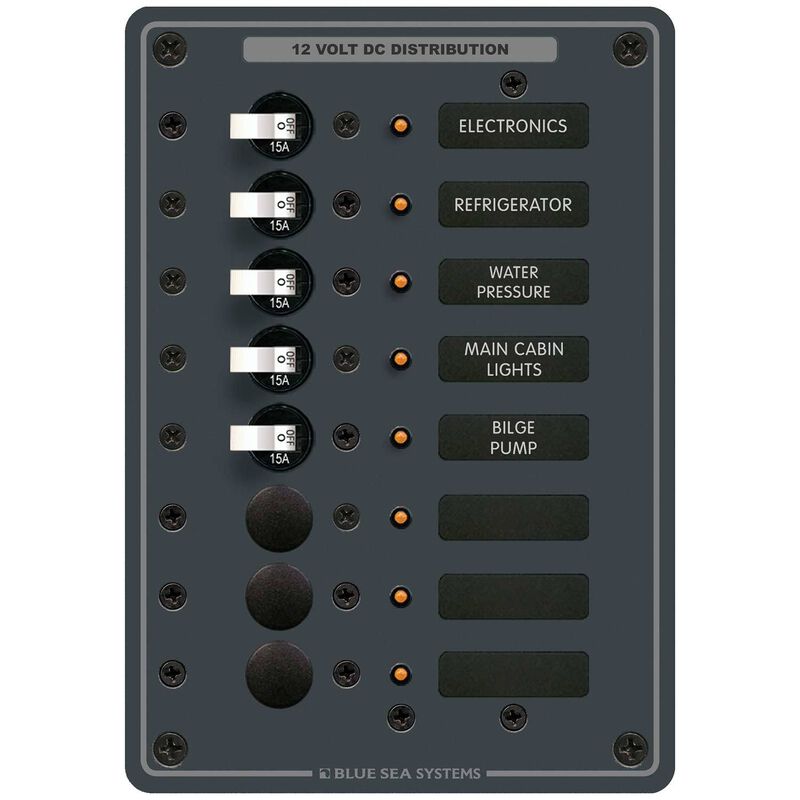

Blue Sea Systems Traditional Metal DC Circuit Breaker Panel, 8-Position
Top features: Blue Sea Systems’ Traditional Metal DC Circuit Breaker Panel, 8-Position is designed for protected below-deck installations where moisture exposure is limited. It comes with all positive, negative, and grounding buses pre-installed, which simplifies the wiring job significantly — having the distribution buses in place means you are terminating circuits to a finished panel rather than building the bus system from scratch. The 8 positions give you room to grow as you add accessories over time, and the panel comes with five A-Series single pole 15A toggle circuit breakers to start. The large backlit labels make circuit identification easy in a bilge compartment or engine room where lighting is limited. Every panel goes through Blue Sea Systems’ load and thermal testing before leaving the factory, which is why Blue Sea panels are the standard choice for NMMA-certified builders and professional marine electricians.
What makes it stand out: A traditional circuit breaker panel with pre-installed distribution buses, rigorously tested, and rated for 100 amps total — the right foundation for a complete DC electrical system on a mid-size or larger vessel.
Specifications:
- Above / Below Deck: Below Deck
- Amperage: 100 Amps
- Switch Quantity: 5 A-Series single pole 15A toggles (8 positions total)
- Voltage: 12/24 Volts DC
- Warranty: Five years

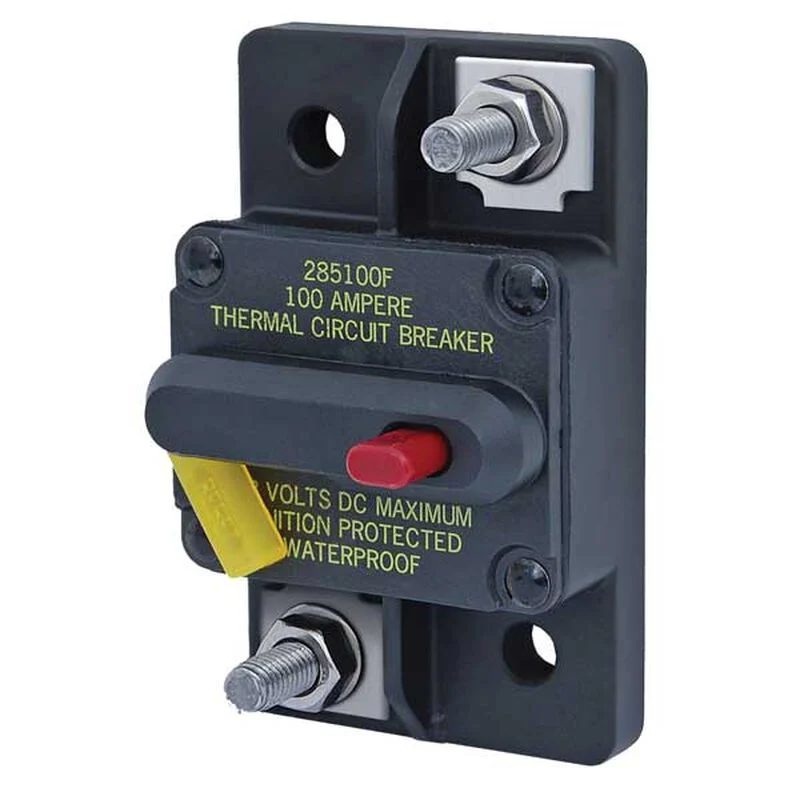

Blue Sea Systems 285 Series Thermal Circuit Breakers, Surface Mount
Top features: Blue Sea Systems’ 285 Series Surface Mount Thermal Circuit Breakers combine circuit protection and a power switch in a single medium-duty breaker rated for high-current applications. They are particularly well suited for windlass and electric winch installations where a conventional panel breaker is impractical — surface mounting the breaker directly at or near the high-current load dramatically reduces the length of unprotected heavy-gauge wiring between the battery and the load, which is both safer and more code-compliant. A visible lever shows when the breaker has tripped, and unlike a toggle-type breaker, it cannot be held manually in the ON position when a fault is still present — a meaningful safety feature for high-current applications. Available in ratings from 25A to 150A in 10-amp increments, they accommodate a wide range of loads including anchor windlasses, electric winches, bow thrusters, and high-current accessories. Ignition protected, meaning they can be installed in the engine room of gasoline-powered boats. They are a direct drop-in replacement for 185 Series breakers. Connected terminal caps protect terminals from accidental contact and help prevent cross-circuit shorts during installation.
What makes them stand out: Circuit protection and switch combined in a single medium-duty breaker with ignition protection, rated to 150A, ideal for windlass, winch, and high-current accessory applications.
Specifications:
- Mounting: Surface
- Voltage: 48V DC
- Amperage: 25A–150A (in 10-amp increments)
- Terminal Studs: M6
- Ignition Protected: Yes (suitable for gasoline engine rooms)
Marine Circuit Breaker FAQ
A marine circuit breaker automatically interrupts current flow when a circuit is overloaded or short-circuited, protecting wiring from heat damage and reducing the risk of electrical fire. When a circuit draws more current than its wiring is rated for, resistance generates heat in the wire insulation. Without a breaker to interrupt it, that heat can ignite the insulation. Marine circuit breakers are rated to trip reliably at their specified current level across the temperature range, humidity, and vibration that boat electrical systems experience — standard household breakers are not designed for this environment and should never be used in marine applications.
Marine circuit breakers are built to withstand saltwater exposure, high humidity, vibration, and the temperature extremes of engine compartments and exposed helm stations — conditions that would cause a standard household breaker to corrode and fail quickly. Marine breakers also meet ABYC (American Boat and Yacht Council) and UL Marine standards for ignition protection in gasoline engine installations, which household breakers do not. Using a non-marine breaker in a marine application voids insurance coverage and creates a genuine fire risk.
The breaker’s amperage rating must be sized to the wiring gauge of the circuit it protects, not to the load. ABYC standards specify maximum allowable current for each wire gauge — the breaker is set to interrupt before the wire reaches its maximum safe current, protecting the wiring from heat damage. Over-sizing a breaker (installing a 30A breaker on 14-gauge wire rated for 15A) defeats its protective function entirely. The breaker should also be rated for the system voltage (12V DC or 24V DC for most boats) and, for engine room installations, must be ignition protected. Consulting ABYC standards or a qualified marine electrician is recommended for any new installation or major upgrade.
Yes, marine circuit breakers are resettable after tripping. However, before resetting you must identify and correct the cause of the trip — whether a short circuit, an overloaded circuit, or a failing motor drawing excessive current. Resetting without addressing the underlying fault means the problem is still present and the breaker will trip again, or if the fault is a wiring short, the wiring may be damaged by the time the breaker opens again. Never hold a breaker in the ON position to override a persistent trip — the 285 Series breaker specifically prevents this by design.
Inspect circuit breakers at least annually as part of your boat’s commissioning process. Look for corrosion at the terminals, discoloration of the breaker housing (which indicates heat from a previous overload), and loose connections. Physically toggle each breaker to confirm it moves freely and resets correctly — a breaker that feels sticky or won’t reset cleanly should be replaced. Replace any breaker that has tripped repeatedly without a clear cause, shows visible corrosion or heat damage, or no longer holds its position reliably. Blue Sea Systems’ five-year warranty on the 8-Position panel and lifetime warranty on the 6-Position above-deck panel reflect the expected service life of quality marine-grade components with proper maintenance.
