About Marine Instrument Systems
Marine instrument systems include wind instruments, depth sounders, and knotmeters and log instruments. These instruments can be installed as dedicated, single-function displays or combined into a comprehensive system with a multifunction display.
Wind Instruments
Installed in the cockpit or at the base of the mast, wind instrument displays inform us of the apparent wind direction and speed. Knowing how high or low a sailboat is pointing in relation to the apparent wind, a helmsperson will head up or head down.
Speed Instruments
Basic speed instruments tell us how fast our boats are going through the water. Combined with a GPS, speed instruments can also display Speed Over the Ground or SOG. More importantly, they can also display Velocity Made Good or VMG, which is the actual progress of a boat toward a waypoint or mark.

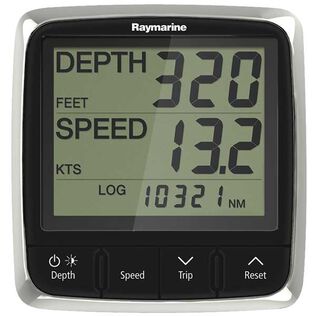

Depth Displays
Indicate how deep the water is so you can set your anchor with proper scope, navigate more accurately and avoid running aground. Transducers, similar to those of a fishfinder, gather depth and speed information and pass it to connected displays.
Wireless Transducers Make Installation Easy

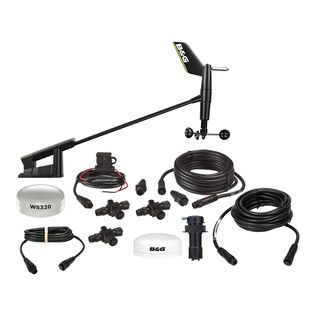

Each function requires a separate transducer that feeds information to the display. Examples of transducers include masthead electronic wind meters and vanes, knot meter paddle wheels and in-hull or thru-hull depth transducers. Until recently, most transducers required a cable that connected to the display. This made installation difficult. For example, when installing a wind instrument system on a sailboat, a data transmission cable had to be run from the display to the wind transducers at the top of the mast. Not an easy process, since this usually entailed removing the mast! Thankfully, wireless transducers are now available for the ultimate in installation convenience.
Marine Instruments FAQ
Marine Instruments FAQ
Marine instruments provide critical data for safe navigation and vessel performance.
- Depth Sounders: Measure water depth and detect underwater obstacles.
- Wind Instruments: Monitor wind speed and direction for sail optimization.
- Knotmeters & Log Instruments: Track boat speed and distance traveled.
- GPS & Chartplotters: Provide real-time location data and route planning.
- Autopilots: Maintain course with minimal manual steering.
Select instruments based on your boat type, navigation needs, and level of integration.
- Vessel Type: Larger boats may require comprehensive multifunction displays, while smaller boats can use standalone units.
- Navigation Needs: Offshore sailors need advanced GPS, radar, and depth sounders.
- Integration: Ensure compatibility with existing systems like chartplotters, VHF radios, and autopilots.
- Display Type: Choose between analog, digital, or touchscreen multifunction displays.
Wind instruments provide real-time wind data, helping sailors make informed decisions.
- Wind Speed: Helps determine appropriate sail trim and reefing.
- Wind Direction: Aids in plotting the most efficient course.
- True vs. Apparent Wind: Allows sailors to differentiate between actual wind and wind felt due to boat motion.
- Wireless vs. Wired: Some instruments offer wireless connectivity for easy installation.
Depth sounders use sonar waves to measure water depth and detect underwater hazards.
- Sonar Technology: Sends sound waves that bounce off the seafloor to calculate depth.
- Prevents Grounding: Alerts boaters to shallow areas and underwater obstructions.
- Integrated Systems: Often paired with fishfinders and chartplotters for enhanced navigation.
- Types of Transducers: Transom-mounted, thru-hull, and in-hull transducers available.
Yes, many modern marine instruments support integration with other onboard electronics.
- GPS & Chartplotters: Combine navigation, speed, and location data.
- Radar: Works with GPS and autopilots for enhanced situational awareness.
- Autopilot: Uses real-time data to maintain course and optimize fuel efficiency.
- Networking Protocols: Ensure compatibility with NMEA 2000 and NMEA 0183 systems.
Regular maintenance ensures accurate readings and extends the lifespan of your marine instruments.
- Sensor Cleaning: Keep transducers and anemometers free of debris and marine growth.
- Software Updates: Update firmware for improved accuracy and functionality.
- Electrical Connections: Inspect cables for wear and corrosion.
- Calibration: Periodically recalibrate depth sounders and wind instruments.
